RS PRO 30W Plug-In AC/DC Adapter 30V dc Output, 1A Output, Блок питания

RS PRO Power Supply

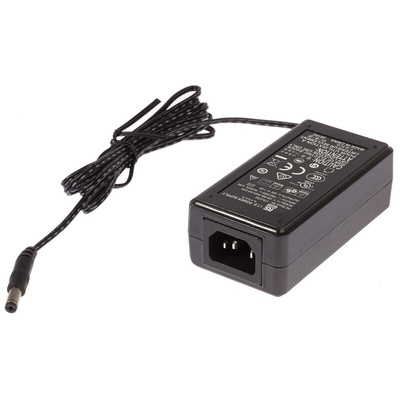

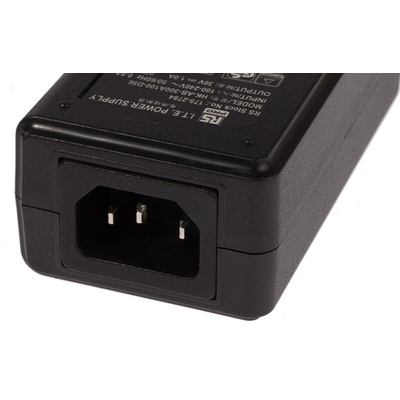

The RS PRO is a 15V power supply is a high-quality desktop AC adapter. This range of switch-mode power supply provides 30W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has an input frequency of 47Hz to 63Hz. The input voltage range is 90VAC to 264VAC (wide range). Its maximum input current is 800mA. It gives an efficiency of 86.95%. The output is fully regulated. Most importantly, it is short circuit protected. It is a reliable product due to high MTBF. The plug type is 3-pin IEC. It has thermal protection of latching type. The overall cable length of the desktop power supply is 99mm. It has a low power consumption, less than 0.10W.

Features and Benefits

• Universal AC input
• Fully regulated output
• EN61000-3-2 compliant
• Overcurrent and overvoltage protection
• High-efficiency
• High MTBF
• Operating temperature ranges between 0°C and 40°C

Applications

• Information technology equipment (ITE) commercial
• Laptops and CCTV cameras
• Networking and peripherals
• Gaming machines

Certifications

• CCC
• CE
• CULus
• FCC
• TUV
• UL

RS Pro Datasheet

Power Supplies Guide EN
