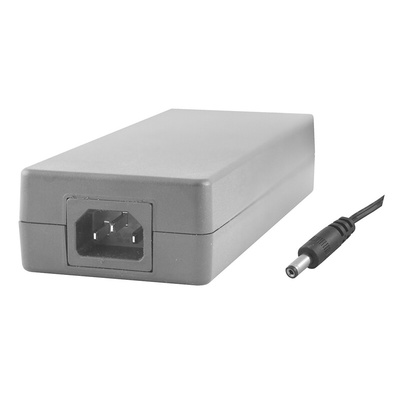

RS PRO 140W Plug-In AC/DC Adapter 20V dc Output, 0 → 7A Output, Блок питания

RS PRO 20 V DC Power Supply, 140 W, 0 → 7 A, 3-Pin IEC Connector

This compact switch-mode power supply (SMPS) from RS PRO transforms AC power into a stable output voltage of 20 V DC. It provides 140 W of continuous current, letting you run DC-powered electronic devices through the mains.
The unit consumes minimal power when plugged in but turned off for greater energy savings. To ensure your safety and the longevity of your device, it's equipped with short-circuit and over-voltage protection. This power supply also complies with EN (European Standards/Norms) 55032 for safe emissions and voltage in multimedia equipment.

Features and Benefits

• Cable length of 1.2 m
• Efficiency of 88%
• IEC C14 input connector
• Dimensions of 173 (L) x 71 (W) x 37 mm (D)
• Input voltage range of 100 to 240 V AC
• Output current range of 0 to 7 A
• One output
• 2.5 x 5.5 mm output connector
• Operating temperature range of 0°C to +40°C
• Load regulation range of ±5%
• 3-pin IEC plug type
