RS PRO 24V Power Supply, 150W, 6.25A, 3-Pin IEC Connector, Блок питания

1752800
Производитель: RS PRO
Цена за шт.
24825.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 50+
Цена 24081.00 руб. 23337.00 руб. 22590.00 руб. 21846.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

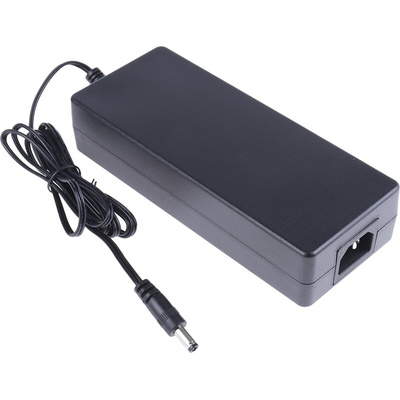

RS PRO 24V Power Supply

The RS PRO is a 24V power supply is a high-quality desktop AC adapter. This range of switch-mode power supply provides 150W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has an input frequency of 47-63Hz. While the input voltage range is 90-264VAC (wide range). Its maximum input current is 2.5A. It gives fully regulated output. The most important factor is it is short circuit protected. It is a reliable product and thus it has high MTBF. It has thermal protection of latching type. The desktop power supply overall cable length is 173mm. It has low power consumption, less than 0.10W. These Desktop Power Supplies Complies with ERP II & Level VI energy regulations and have a high-efficiency rating, no-load power consumption and low leakage current and Complies with the relevant safety and EMC standards.

Features and Benefits

• Universal AC input
• Fully regulated output
• Overcurrent and overvoltage protection
• High-efficiency
• High MTBF
• Limited power source
• Operating temperature ranges between 0°C and 40°C

Applications

• It is used in information technology equipment (ITE) commercial
• A desktop power supply is a PSU specifically designed to be used by small items or applications, like laptops and CCTV cameras
• Networking and peripherals
• Gaming machines

Certifications

• CCC
• CE
• CULus
• FCC
• TUV
• UL

Техническая спецификация
pdfDatasheet
pdfPower Supplies Guide EN
Время ожидания:
5мс

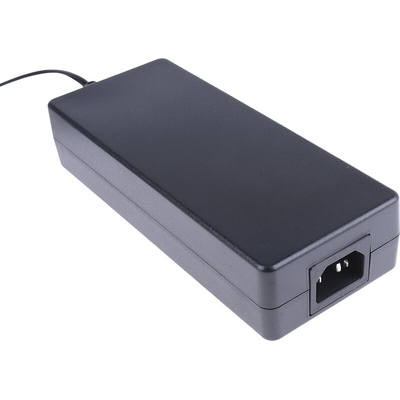

Входной разъем:
IEC C14
Выходная мощность номинальная:
150Вт
Габаритная ширина:
71мм
Габаритные размеры:
173 x 71 x 37mm
Диапазон входного напряжения:
90 → 264 В
Диапазон выходного тока:
6.25A
Диапазон рабочих температур:
0 → +40 °C
Длина общая:
173мм
Кабель - длина:
1.5м
Количество выходов:
1
Максимальная температура:
+40°C
Минимальная температура:
0°C
Номинальное выходное напряжение:
24В
Общая глубина:
37мм
Серия:
15DYS6150
Тип вилки:
3-Pin IEC

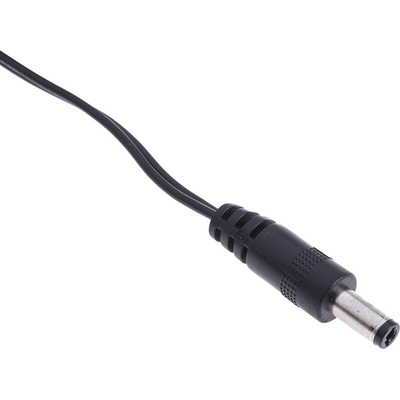

Тип выходного соединения:
2.1 x 5.5 mm Connector
Уровень энергоэффективности:
VI
Эффективность:
88%
