SD12B1S12I, Renold Renold SD (Red Box) 12B-1 Connecting Link Steel Roller Chain Link, Звено роликовой цепи

Renold SD Simplex Single Cranked Cottered link (No. 12)

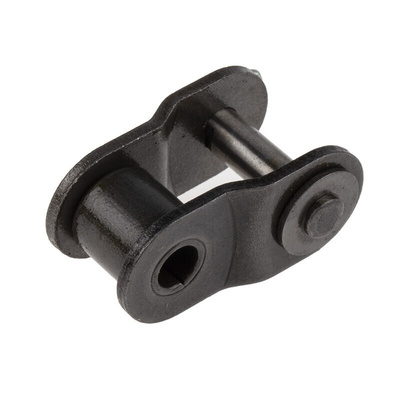

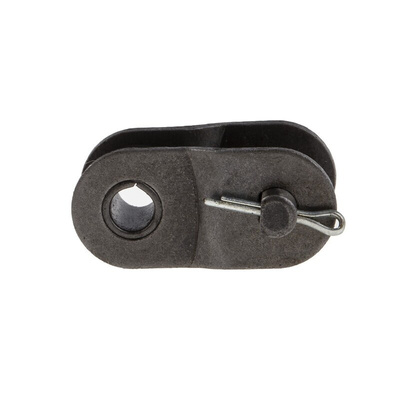

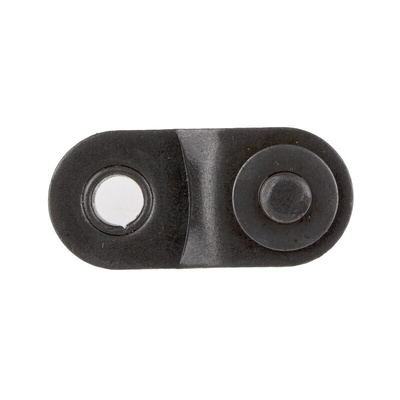

Renold SD Simplex Single cranked Cottered link (No. 12) with cranked plate onto a bush and roller assembly at the narrow end. A clearance fit connecting pin is fitted at the wide end and is secured by a split pin.

Features and Benefits

Great range of sizes
Excellent quality making them wear and fatigue resistant

Product Application Information

These chain links have been designed for machinery which is involved in construction and requires chain that can cope with heavy-duty applications. The products are fail-safe to ensure optimum efficiency and the safety of the machinery’s operators.
Renold designs and manufactures roller chains for all types of construction machinery including dump trucks, excavators, loaders and fork lifts.

Renold SD Simplex Single Cranked Cottered Chain

The Renold SD simplex single cranked cottered chain is a steel type connecting link. This chain link is designed for heavy-duty construction machinery. It has two connecting pins riveted onto an outer plate. The clearance fit connecting plate is secured by a spring clip that snaps into the grooves of the protruding pins. This product has fail-safe to ensure optimum efficiency and the safety of the machinery’s operators. The chain has better wear resistance due to its large bearing area.

Features and Benefits

• Great range of sizes
• High-quality
• Abrasion resistant
• Corrosion resistant
• Simple numbering system due to compliance with European standards
• Its chain's pitch size varies between 4mm to 114.3mm and the chain links have a large-pin diameter
• Easy numbering where first two digits are the pitch sizes and the suffix indicates the number of strands in a chain
• The ISO standard has a simple numbering system

Applications

• Heavy load construction machinery
• Dump trucks
• Excavators
• Loaders
• Fork lifts

Certifications

• DIN8187
• ISO606

Chain Standards

European standard chains are covered by DIN8187 and ISO606 standards. There are 3 versions:

• Simplex
• Duplex
• Triplex

Pitch size varies between 4 mm to 114.3 mm, with the chain links having a large pin diameter. The chains therefore have better wear resistance due to the bearing area being of a greater size.

The ISO standard has a simple numbering system:

• The first two digits are the pitch size and are measured in 1/16 s of an inch, for example 08 = 8/16
• “B” indicates European Standard
• The suffix indicates the number of strands in a chain
