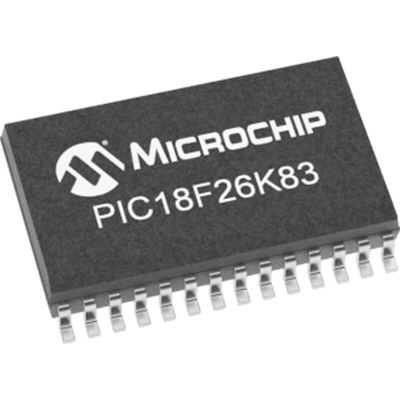

Microchip PIC18F26K83-I/SO, 8bit PIC Microcontroller, PIC18F, 64MHz, 64 kB Flash, 28-Pin SOIC, Микроконтроллер

Microchip Technology Microcontroller

The Microchip technology PIC18F26K83-I/SO family type, SOIC package, surface mount, 28-pin CANTM technology 8-bit microcontroller has a maximum voltage rating of 5.5V. The microcontroller operates at a maximum speed of 64MHz and features 64kb ISP flash program memory, 4096bytes of SRAM and 1024bytes of EEPROM.

Features and Benefits

• 12-bit Analogue-to-Digital (ADC2) with computation
• 5-bit Digital-to-Analogue converter (DAC)
• Access to all memory spaces and peripherals
• Asynchronous UART, RS-232, RS-485 compatible
• Automating Capacitive Voltage Divider (CVD)
• C compiler optimized RISC architecture
• Device Information Area (DIA) for data storage of temp sensor factory calibration value, factory ID and FVR values for ADC and COMP
• Digital communication peripherals 2-UART, 1-SPI, 1-I2C
• Direct Memory Access (DMA) controllers
• Eliminates need for CPU involvement in data transfers
• EXtreme Low Power (XLP) technology
• Fixed Voltage Reference (FVR) module
• Interrupt vector table for faster interrupt response time
• Memory Access Partition (MAP) - Customize flash partitioning with bootloader write protection
• Operating temperature ranges between -40°C and 85°C
• Programmable single or dual priority
• Separate transmit and receive buffers with 2-byte FIFO and DMA capabilities
• Six modes of operation
• Supports CAN 1.2, 2.0A and 2.0B
• Two comparators
• Two level hardware context saving
• Zero cross detect (ZCD)

Applications

• Embed designs
• Household appliances
• Industrial
