1SBL136082R3022 AFS09Z-30-22-30, ABB Jokab AFS Series Contactor, 24 V dc Coil, 3-Pole, 25 A, 3NO, 600 V ac, Реле

ABB Jokab Contactor, 0.49kg Weight, 600V AC Contact Voltage Rating - AFS Series - 1SBL136082R3022 AFS09Z-30-22-30

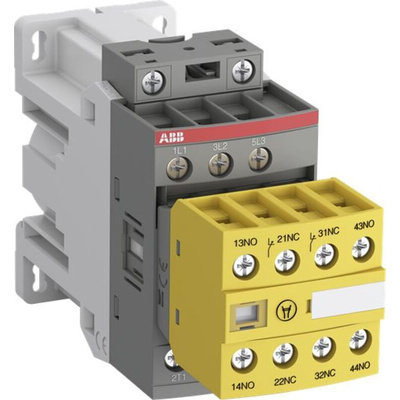

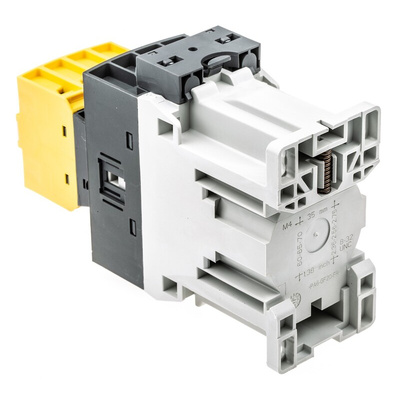

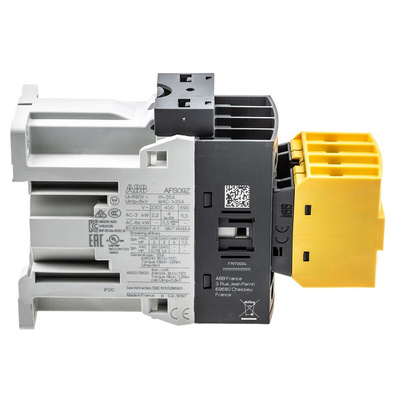

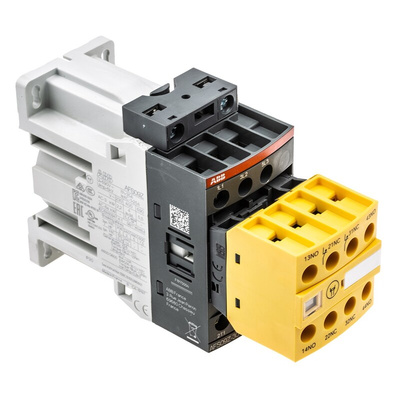

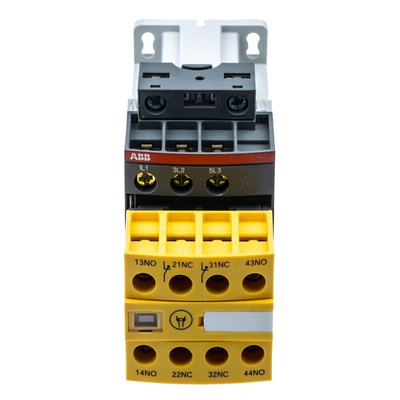

You can be sure sparks won't fly, thanks to this contactor from ABB Jokab. With a three-pole and throw configuration, it safeguards against overcurrents that could damage downstream equipment. Power consumption of just 1.7W means energy consumption is kept on the down-low. Yellow housing aids fast identification, so you can easily locate the device no matter the setting. Convenient easy-to-use screw terminals mean you won't get yourself in a twist during installation.

Features & Benefits

• Mechanical switching frequency of up to 3,600 cycles per hour boosts your workflow
• Compact dimensions of 45 (L) x 80 (D) x 110.5mm (W) mean it's a space-efficient choice
• Light 0.49kg weight keeps strain to a minimum
• High 6kV rated impulse withstand voltage ensures your equipment is protected during peak electrical pressure
• Up to 3km altitude functionality, for use in elevated conditions

Applications

• Electrical circuit management
• Machine safety
• Heating and lighting solutions

Can I use this device in harsh conditions?

Yes. When operating without a thermal O/L relay, this product functions in a temperature range between -40°C and +70°C, so it's safe to use in harsh conditions.
