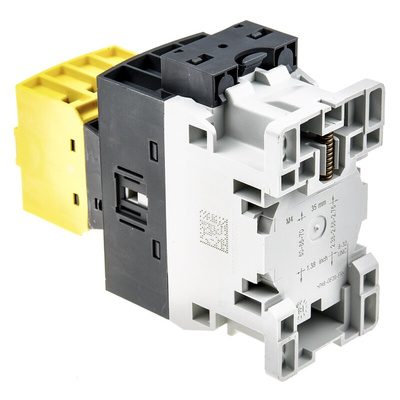

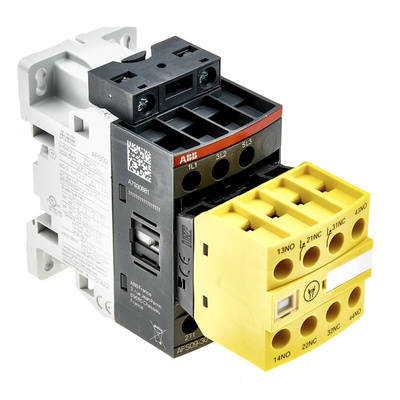

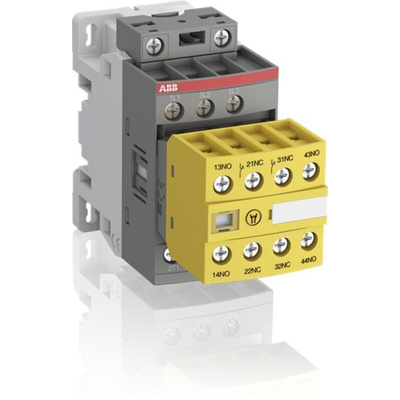

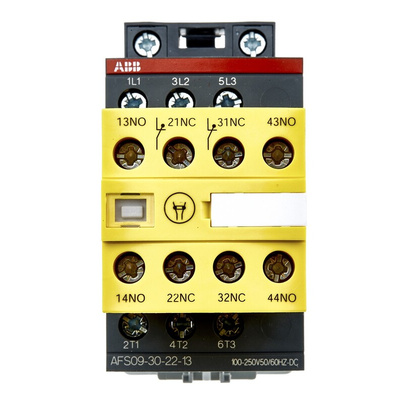

1SBL137082R1322 AFS09-30-22-13, ABB Jokab AFS Series Contactor, 100 to 250 V ac/dc Coil, 3-Pole, 25 A, 5.5 kW, 3NO, 600 V ac, Реле

ABB Jokab Contactor, 4 Auxiliary Contacts, 110.5mm Length - AFS Series - 1SBL137082R1322 AFS09-30-22-13

For a reliable power solution that takes on the demands of heavy-duty machinery, choose this contactor from ABB Jokab. Its built-in electromagnetic coil receives energy from an input source, which opens or closes the internal contacts to control the flow of power to your device. Thanks to its four auxiliary contacts, you can link it to multiple control and monitoring devices for enhanced functionality. Installation is a cinch, as this unit is designed for speedy mounting on a DIN rail.

Features & Benefits

• Screw terminals achieve a secure electrical connection using just a screwdriver
• Safe for use in demanding environments, thanks to a broad operating temperature range of -40°C to +70°C
• 3 poles for convenient use in 3-phase electrical systems

Applications

• Industrial conveyors
• Robotics systems
• Mining and quarrying industries

How often can I use this contactor?

As it has a maximum switching frequency of 3600 cycles per hour, you can rely on this contactor for heavy-duty switching tasks.

Can this contactor handle high voltages?

Yes, it has a rated impulse withstand voltage of 6kV to take powerful voltage spikes in its stride.

Datasheet

Catalogue - AFS Contactors
