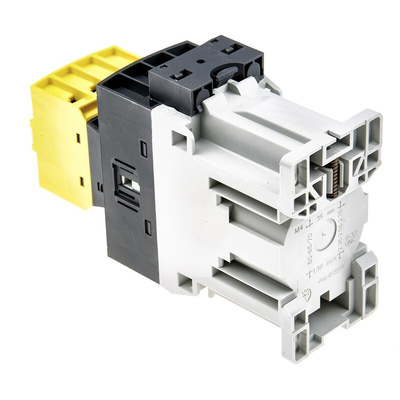

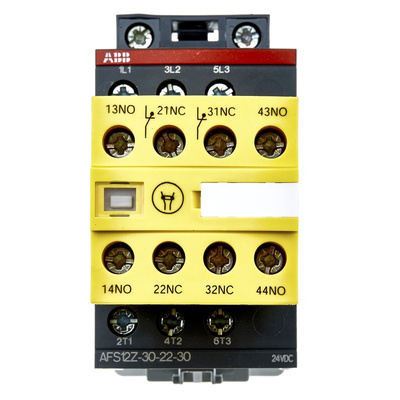

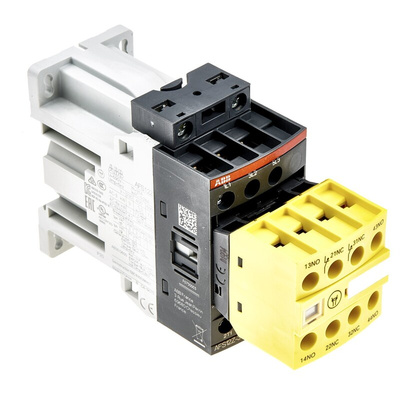

1SBL156082R3022 AFS12Z-30-22-30, ABB Jokab AFS Series Contactor, 24 V dc Coil, 3-Pole, 28 A, 3NO, 600 V ac, Реле

AFS 3P Safety Relay

The ABB Jokab safety relay is a 3-pole and throw configuration relay. It has a coil voltage of 24VDC, contact current rating is 28A and contact voltage rating is 600VAC. It has low holding consumption up to 1.7W that reduces panel energy consumption. It has a front marked symbol that guarantees the right contactor status.

Features and Benefits

• Built-in surge suppression
• Control circuit with an electronic coil interface
• Dedicated 24VDC for direct control by PLC output
• Front-mounted auxiliary contact block
• Minimum switching capacity is 12V/3mA
• Mirror and mechanically linked contacts
• Protective cover to prevent manual operation

Applications

• Controlling circuits
• Machine safety applications
• Monitoring circuits

Certifications

• CSA C22.2 N°14
• EN 60947-1 / 60947-4-1
• IEC 60947-1 / 60947-4-1
• UL 508
