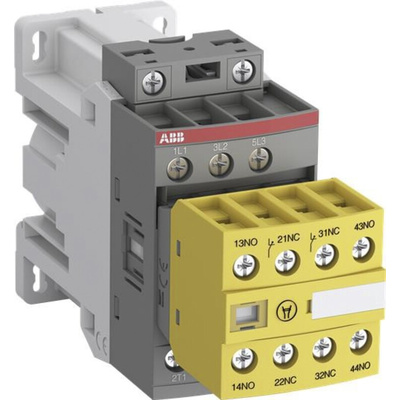

1SBL176082R3022 AFS16Z-30-22-30, ABB Jokab AFS Series Contactor, 24 V dc Coil, 3-Pole, 30 A, 7.5 kW, 3NO, 600 V ac, Реле

1753208
Номер производителя: 1SBL176082R3022 AFS16Z-30-22-30Производитель: ABB Jokab
Цена за шт.
38001.60 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

ABB Jokab Contactor, 600V AC Contact Voltage Rating, Screw Terminals - AFS Series - 1SBL176082R3022 AFS16Z-30-22-30

Need to constantly flip a system on and off? Help to extend its life cycle with this contactor from ABB Jokab. The fast-acting switch is designed to continuously make or break an electric circuit, so keeps high-current load devices running reliably. Mirror contacts boost the safety stakes by monitoring and instantly reacting to the unit's switched state. A mechanical switching frequency of 3,600 cycles per hour keeps it going at a pace that meets the needs of demanding systems. As this contactor comes with a protective cover, it cuts out the risk of unauthorised manual operation.

• Built-in surge suppression prevents power spikes from damaging equipment
• IP20-rated enclosure that's touch-proof and protected against objects larger than 12mm
• Bright yellow housing makes it quick and easy to identify as a safety device
• Screw terminals hold wires securely, so there's minimal need for re-tightening

Applications

• Commercial and industrial lighting systems
• Water pumps
• Food and beverage industries
• Cold storage facilities

AFS09Z ... AFS38Z contactors are designed for machine safety applications. They are delivered with fixed front-mounted auxiliary contact blocks making them ideal for monitoring and controlling circuits. Mechanically linked and mirror contacts make your system safer. - control circuit with electronic coil interface: - dedicated 24 V DC for direct control by PLC-output ≥ 250 mA, low holding consumption up to 1.7 W - reduced panel energy consumption - mirror and mechanically linked contacts, with front marked symbol, always guaranteeing the right contactor status

Is this contactor energy-efficient?

control circuit with electronic coil interface
dedicated 24 V DC for direct control by PLC-output
Mirror and mechanically linked contacts
Front-mounted auxiliary contact block
Protective cover to prevent manual operation
Minimum switching capacity 12 V / 3 mA
Built-in surge suppression

Yes. With a low power holding consumption of up to 1.7W, you can count on the unit to reduce your control panel energy usage.

Техническая спецификация
pdfDatasheet
pdfApplication Sheet - ABB Jokab Safety
pdfInstruction Sheet - 1SBL176082R3022 AFS16Z-30-22-30
pdfBrochure - Electrification Products
pdfCatalogue - Motor Protection & Control
pdfBrochure - Electrification Products
pdfCatalogue - Motor Protection & Control
Вид монтажа:
Крепление на DIN рейку
Глубина:
80мм
Диапазон:
AFS16Z-30-22-30
Длина:
45мм
Катушка напряжение:
24 В пост. тока
Количество вспомогательных контактов:
4
Количество полюсов:
3
Конфигурация вспомогательных контактов:
2NO + 2NC
Конфигурация полюса и сброса:
3P
Мощность номинальная:
7.5 кВт
Напряжение управления:
250 В
Номинальное напряжение контакта:
600 В перем. тока
Номинальный ток контакта:
30 A
Нормальное состояние конфигурации:
3NO
Рабочая температура - максимальная:
+60 °C, +70°C
Рабочая температура - минимальная:
-40 °C, -25°C
Серия:
AFS
Тип клеммы:
Винт
Функция:
Safety
Ширина:
110.5мм
