1SBL177082R1122 AFS16-30-22-11, ABB Jokab AFS Series Contactor, 24 → 60 V ac Coil, 3-Pole, 30 A, 3NO, 600 V ac, Реле

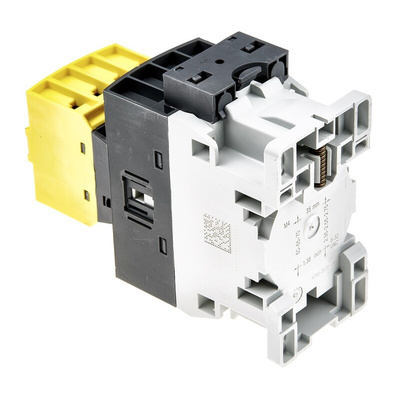

ABB Jokab AFS 3P Safety Contactor Relay

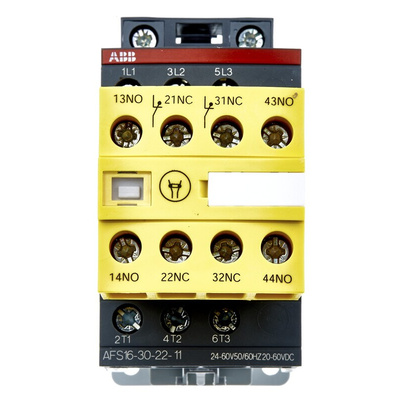

The 3-Pole ABB Jokab safety contactor relay has a coil voltage 24VAC to 60VAC at 50/60Hz and 20 to 60VDC. It has a contact current rating 30A and contact voltage rating 600VAC. It reduces panel energy consumption. It is with the front marked symbol that guarantees the right contactor status. It has yellow housing for easy identification.

Features and Benefits

• Built-in surge suppression
• Control circuit with electronic coil interface
• Dedicated 24VDC for direct control by PLC output
• Front-mounted auxiliary contact block
• Minimum switching capacity 12V/3mA
• Mirror and mechanically linked contacts
• Protective cover to prevent manual operation

Applications

• Controlling circuits
• Machine safety applications
• Monitoring circuits

Certifications

• CSA certified C22.2 N°14
• EN 60947-1/60947-4-1
• IEC60947-1/60947-4-1
• UL 508
