1SBL236082R3022 AFS26Z-30-22-30, ABB Jokab AFS Series Contactor, 24 V dc Coil, 3-Pole, 45 A, 11 kW, 15 kW, 3NO, 600 V ac, Реле

ABB Jokab Contactor, +70°C Maximum Operating Temperature, 6kV Rated Impulse Withstand Voltage - AFS Series - 1SBL236082R3022 AFS26Z-30-22-30

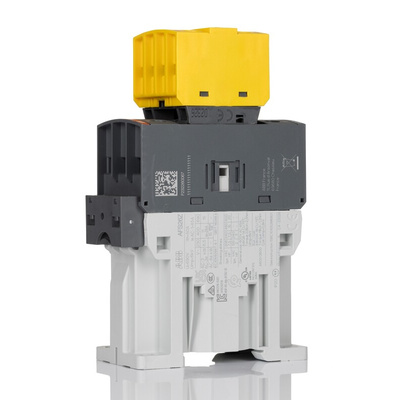

To stay on top of power flow, control and switch your equipment with this contactor from ABB Jokab. It comes with pre-installed front-facing auxiliary contact blocks, so telling your machinery when to get going is a breeze. The device has a mechanical switching duration of 3,600 cycles per hour, so you can rest assured that it's low-maintenance and built to last a long time. Spotting it in a busy setup isn't a problem, thanks to the yellow front housing.

Features & Benefits

• Built-in surge suppressor safeguards your machinery from damage
• Delivers reliable protection from transient overvoltage, thanks to its 6kV rated impulse withstand voltage
• Simple DIN-rail mounting style eliminates the need for complex tools
• Screw terminals ensure secure vibration-resistant electrical connections

Applications

• Thermal evaporators
• Residential lighting
• Electric heaters

What's the operating temperature range of this component?

When fitted with a thermal O/L relay, this unit has an operating temperature range of -25°C to +60°C. Without a relay it operates at -40°C to +70°C.

What's the device's contact configuration?

It's fixed at 2NO/2NC, so it handles both circuit activation and deactivation in one unit.
