RS PRO 16W Plug-In AC/DC Adapter 5V dc Output, 0 → 3.2A Output, Блок питания

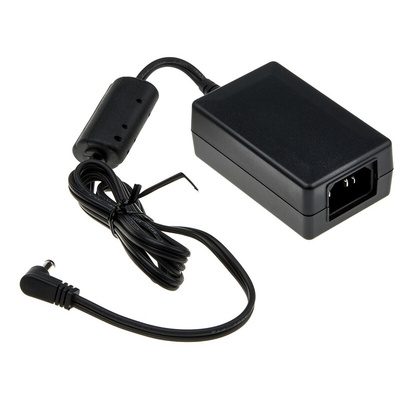

RS PRO 5 V DC Power Supply, 16 W, 0 → 3.2 A

This lightweight switch-mode power supply (SMPS) from RS PRO converts AC current to DC, letting you power your DC-compatible devices through the mains. It provides 16 W of continuous current, making it suitable for many general power applications.
For your safety, the unit comes with overvoltage, over-current and thermal protection. It only uses 0.100 W of power when there's no current flowing through the circuit and is also Energy Efficiency Level VI compliant, so you can rest assured it's highly efficient. What's more, it recovers automatically in case of short-circuiting to protect the device from any damage.

Features and Benefits

• Efficiency of 81.78%
• Input frequency range of 50 to 60 Hz
• Input voltage range of 100 to 240 V AC
• Output voltage of 5 V DC
• Maximum input current of 500 mA
• Operating temperature range of 0°C to +40°C
• Output current range of 0 to 3.2 A
• Desktop mounting
• Dimensions of 80.6 (L) x 50 (W) x 31 mm (D)
• Load and load regulation range of ±5%
• One output

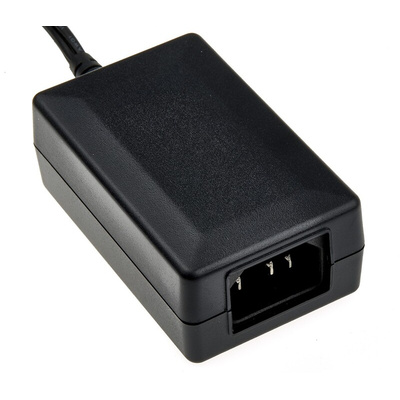

• C14 series

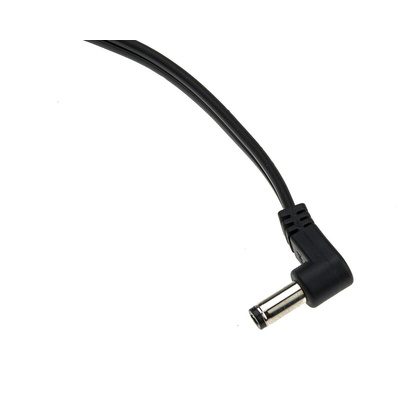

• R/A 2.1 C+ output connector
• Ripple and noise of 150 mV
