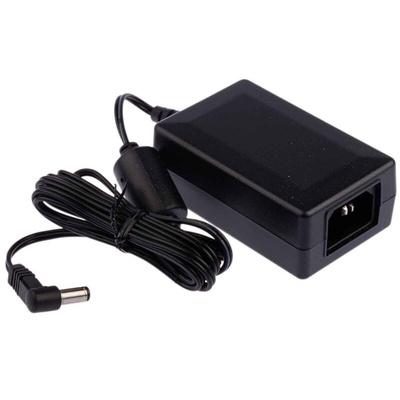

RS PRO 18W Plug-In AC/DC Adapter 12V dc Output, 0 → 1.5A Output, Блок питания

RS PRO 5VDC Power Supply

The RS PRO is a 12V power supply desktop AC adapter. This range of switch-mode power supply provides 18W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has input frequency of 50-60Hz, while the input voltage range is 100-240VAC (wide range). Its maximum input current is 500Ma. It gives fully regulated output and most importantly, it is short circuit protected. It is a reliable product with high MTBF. The plug type is C14 connector. Thermal protection is of latching type. The overall cable length of this desktop power supply is 80.6mm. It has low power consumption, less than 0.10W.

Features and Benefits

• Universal AC input
• Fully regulated output
• Overcurrent and overvoltage protection
• High-efficiency
• High MTBF
• Limited power source
• Operating temperature ranges between 0°C and 40°C

Applications

• It is used in information technology equipment (ITE) commercial
• A desktop power supply is a PSU specifically designed to be used by small items or applications, like laptops and CCTV cameras
• Networking and peripherals
• Gaming machines

Certifications

• CCC
• CE
• CULus
• FCC
• TUV
• UL
