RS PRO 16W Plug-In AC/DC Adapter 5V dc Output, 0 → 3.2A Output, Блок питания

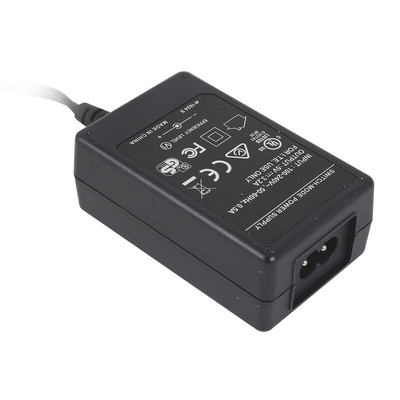

RS PRO 5 V DC Power Supply, 16 W, 0 → 3.2 A

This RS PRO switch-mode power supply converts AC currents into a stable DC voltage, letting you operate DC-powered devices through the mains. It comes with a universal IEC-320-C8 input connector, making it suitable for a range of applications.
The unit uses just 0.1 W of electricity when there's no current flowing through the circuit for greater energy savings. It also has a high overall efficiency of 81.78%. For safe use, this adaptor is equipped with overload, overvoltage and short-circuit protection. It's used with a variety of equipment such as LED lights, advertising signs and LCD monitors.

Features and Benefits

• Input voltage range of 100 to 240 V AC
• Input frequency range of 50 to 60 Hz
• Maximum input current of 500 mA
• Output voltage of 5 V DC
• Output power of 16 W
• Output current range of 0 to 3.2 A
• Dimensions of 80.6 (L) x 50 (W) x 31 mm (D)
• Operating temperature range of 0°C to +40°C
• Line and load regulation range of ±5%
• R/A 2.1 C+ output connection type
• C8 series connector
• Desktop mounting
• Single output
• Ripple and noise of 150 mV
• RoHS (Restriction of Hazardous Substances) standards compliant
• Energy Efficiency Level VI
