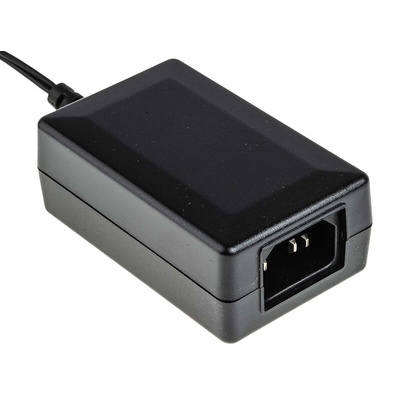

RS PRO 24W Plug-In AC/DC Adapter 12V dc Output, 0 → 2A Output, Блок питания

RS PRO 12 V DC Power Supply, 0 → 2 A

The RS PRO 12 V desktop power supply is versatile and suitable to power many household electronics. It provides good reliability, high quality and excellent power consumption efficiency.

This power unit is supplied in a compact, quality casing and is capable of producing 24 W of continuous output power. Its input voltage range is wide. Highly efficient, the component has a low power consumption of less than 0.10 W and is protected from the negative effects of short circuits. The unit has a universal AC input and is supplied with a cable. Its efficiency rating is VI which meets, or exceeds, global energy efficiency requirements.

The power supply can be used on gaming machines, laptops, networks and peripherals. It's been vigorously tested to guarantee its quality and compliance to international electrical safety standards. It also has a one-year warranty.

Features and Benefits

• Desktop power supply
• Input voltage range of 100 V to 240 V

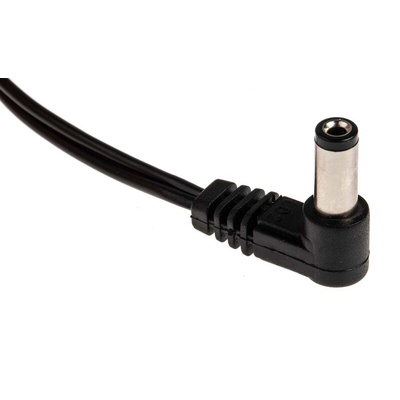

• Output connection type of R/A 2.1 C+
• Line regulation range of ± 5%
• Load regulation range of ± 5%
• Power signal conversion type of AC - DC
• Rated output power of 24 W
• Output current range of 0 A to 2 A
• Cable length of 1530 mm
• Includes overload, over voltage, and short circuit protection
• Output voltage rating of 12 V DC
• Desktop mounting type
• One output
• Energy efficient level of VI
• Input frequency range of 50 Hz to 60 Hz
• Maximum input current of 600 mA
• Efficiency of 86.2%
• Dimensions of 80.6 mm x 50 mm x 31 mm
• Operating temperature range of 0°C to +40°C
• CCC, CE, CULus, FCC, TUV and UL safety approved for electronic products
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Power Supplies Guide EN

RS PRO Datasheet
