RS PRO 24W Plug-In AC/DC Adapter 24V dc Output, 1A Output, Блок питания

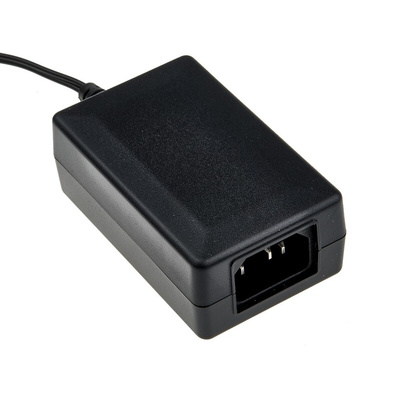

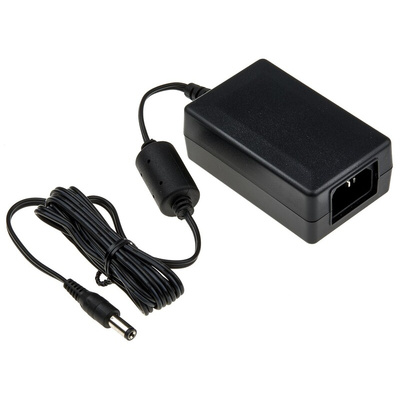

RS PRO 24 V DC Power Supply, 1 A, C14 Connector

A general-purpose power supply unit, the RS PRO desktop power supply is suitable for IT (information technology) equipment, gaming machines and laptops. It supplies 24 W of continuous output power and is small enough to carry around easily.

Besides a fully regulated output, the component is also short circuit protected, meaning it will trip as soon as an overcurrent is detected and has a low power consumption of less than 0.10 W. It has a high MTBF (mean time between failure) that ensures a long product life as well as a high efficiency rating of VI.

The product has been tested in line with industry standards, to ensure its reliability. The unit's universal input connector conforms to IEC-320-C14 (International Electrotechnical Commission) standards and the adaptor is IEC, UL (Underwriters Laboratories) and EN (European Norms) safety approved.

Features and Benefits

• Desktop power supply for general purpose applications
• Input voltage range of 90 V to 264 V AC
• Input connector of IEC 320 - C14
• Power signal conversion type of AC - DC
• Plug type of C14
• Rated output power of 24 W
• Output current range of 1 A
• Includes overload, over voltage and short circuit protection
• Switched-mode power supply regulator
• Output voltage rating of 24 V DC
• Desktop mounting type
• One output
• Energy efficient level of VI
• Input frequency range of 47 Hz to 63 Hz
• Maximum input current of 600 mA
• Efficiency of 86.8%
• Operating temperature range of 0°C to +40°C
• Dimensions of 80.6 mm x 50 mm x 31 mm
• Safety approved to IEC60950, UL60950, EN60950
• CCC, CE, CULus, FCC, TUV and UL certified for electronic products
• RoHS (Restriction of Hazardous Substances) compliant
