RS PRO 20W Plug-In AC/DC Adapter 5V dc Output, 4A Output, Блок питания

RS PRO 12VDC Power Supply

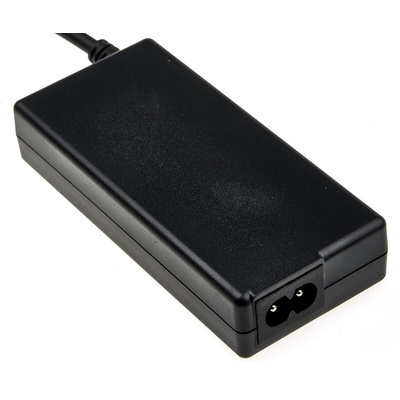

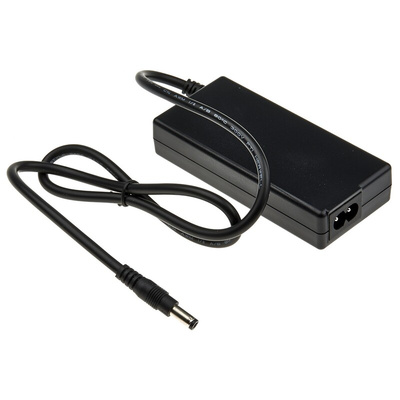

The RS PRO is a 5V AC/DC switch-mode power desktop AC adapter. This range of switch-mode power supply provides 20W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has an input frequency of 50-60Hz. While the input voltage range is 100-240VAC (wide range), its maximum input current is 3.5A. It has an efficiency of 87.66%. It gives fully regulated output and most importantly, is short circuit protected. It is a reliable product with high MTBF. The plug type is C14 connector. Thermal protection is of latching type. The overall cable length of this desktop power supply is 118.5mm. It has low power consumption, less than 0.10W.

Features and Benefits

• Universal AC input
• Fully regulated output
• Overcurrent, overvoltage and short circuit protection
• High-efficiency
• High MTBF
• Limited power source
• Operating temperature ranges between 0°C and 40°C

Applications

• It is used in information technology equipment (ITE) commercial
• A desktop power supply is a PSU specifically designed to be used by small items or applications, like laptops and CCTV cameras
• Networking and peripherals
• Gaming machines

Certifications

• CCC
• CE
• CULus
• FCC
• TUV
• UL
