RS PRO 42W Plug-In AC/DC Adapter 12V dc Output, 3.5A Output, Блок питания

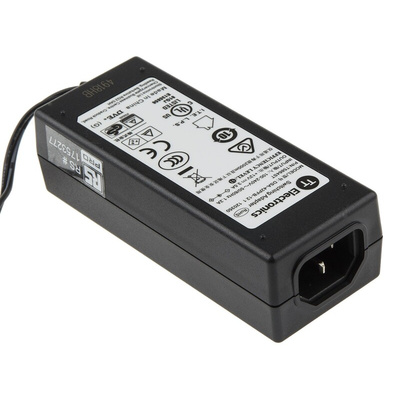

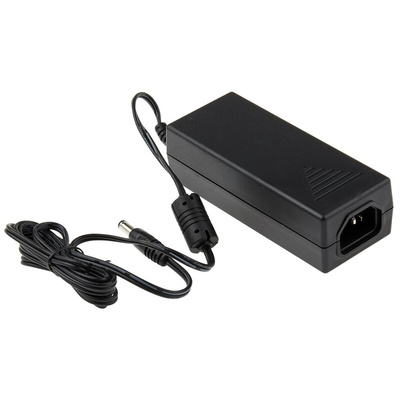

RS PRO 12 V DC Power Supply, 42 W, 3.5 A

This 42 W RS PRO switch-mode power supply (SMPS) offers a reliable way to keep your DC-compatible equipment running. It supports input voltages from 100 to 240 V AC so that you can use it in many countries worldwide.
The power supply's 1.5-metre cable lets you power devices in spaces with limited socket access. The unit's also designed to protect against overload, over-voltage and short circuits to ensure your safety and that of the device.
This product has been built to comply with RoHS (Restriction of Hazardous Substances) safety standards, so it contains only minimal levels of any restricted hazardous materials. You can use it with items like games consoles and laptops.

Features and Benefits

• Efficiency of 87.66%
• Energy Efficiency Level VI
• Input frequency range of 50 to 60 Hz
• Line regulation range of ±5%
• Load regulation range of ±5%
• Maximum input current of 500 mA
• Operating temperature range of 0°C to +40°C
• Output current range of 3.5 A
• Output voltage rating of 12 V DC
• Length of 118.5 mm
• Width of 48.5 mm
• Depth of 35 mm
• Ripple and noise of 150 mV
• Desktop mounting type
• Single output
• C14 series

RS Pro Datasheet

Power Supplies Guide EN
