RS PRO 50W Plug-In AC/DC Adapter 15V dc Output, 3.34A Output, Блок питания

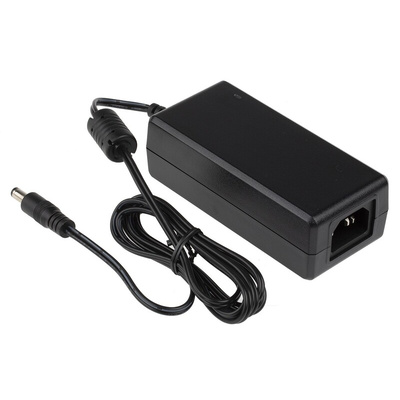

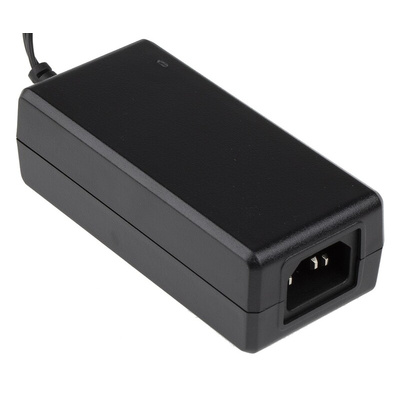

RS PRO 15V Power Supply

The RS PRO is a 15VDC power supply AC/DC switch-mode power desktop AC adapter. This range of switch-mode power supply provides 50W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has an input frequency of 50-60Hz. While the input voltage range is 100-240VAC (wide range). This Power supply has a maximum input current is 1.2A. It gives an efficiency of 88%. It gives fully regulated output and most importantly, is short circuit protected. It is a reliable product with high MTBF. The plug type is C14 connector. Thermal protection is of latching type. The desktop power supply overall cable length is 115mm. It has low power consumption, less than 0.10W.

Features and Benefits

• Universal AC input
• Fully regulated output
• Overvoltage and short circuit protected
• High-efficiency
• LED power good indicator
• AC input fuse
• Operating temperature ranges between 0°C and 40°C

Applications

• It is used in information technology equipment (ITE) commercial
• A desktop power supply is a PSU specifically designed to be used by small items or applications, like laptops and CCTV cameras
• Networking and peripherals
• Gaming machines

Certifications

• CCC
• CE
• CULus
• FCC
• TUV
• UL
