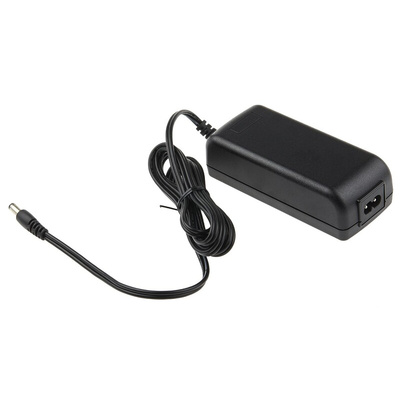

RS PRO 50W Plug-In AC/DC Adapter 15V dc Output, 3.33A Output, Блок питания

RS PRO 15VDC Power Supply

The RS PRO is a 15V power supply AC/DC switch-mode power desktop AC adapter. This range of switch-mode power supply provides 50W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has an input frequency of 50-60Hz. While the input voltage range is 90-264VAC (wide range). Its maximum input current is 50mA. It gives an efficiency of 89%. It gives fully regulated output and most importantly, is short circuit protected. It is a reliable product with high MTBF. The plug type is C8 connector. Thermal protection is of latching type. The desktop power supply overall cable length is 126.4mm. It has low power consumption, less than 0.10W.

Features and Benefits

• Universal AC input
• Fully regulated output
• Overvoltage and short circuit protected
• High-efficiency
• LED power good indicator
• AC input fuse
• Operating temperature ranges between 0°C and 40°C

Applications

• It is used in information technology equipment (ITE) commercial
• A desktop power supply is a PSU specifically designed to be used by small items or applications, like laptops and CCTV cameras
• Networking and peripherals
• Gaming machines

Certifications

• CCC
• CE
• CULus
• FCC
• TUV
• UL
