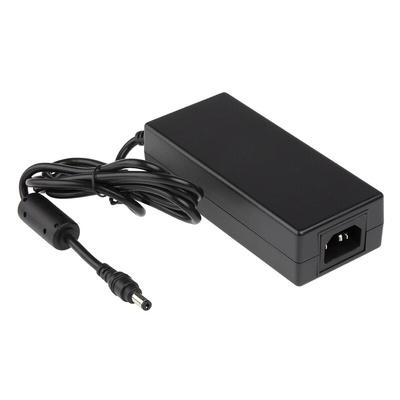

RS PRO 90W Plug-In AC/DC Adapter 12V dc Output, 7.5A Output, Блок питания

RS PRO 12 V DC Power Supply, 90 W, 7.5 A, C14 Connector

This RS PRO desktop power adaptor offers a stable and safe source of electricity for your everyday equipment. As a switch-mode power supply (SMPS), it provides high efficiency in converting AC inputs to DC outputs thanks to a regulator that minimises power dissipation. It provides 90 watts of continuous power to your devices while consuming very little, so it's energy-efficient too.
The power supply will protect your devices against overload, overvoltage and short-circuits, preventing electrical damage and overheating. This versatile unit is suitable for input voltages between 100 and 240 V AC. It's often used to power appliances, including gaming consoles, laptops and networking devices.

Features and Benefits

• Single output

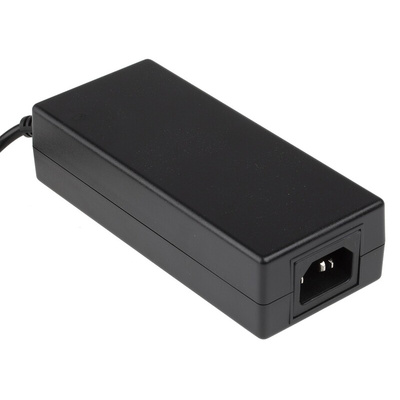

• C14 plug type
• IEC 320-C14 input connector
• Cable length of 137 mm
• Output voltage rating of 12 V DC
• Output current range of 7.5 A
• Input frequency range of 50 to 60 Hz
• Input current rating of 1.5 A
• Line and load regulation range of ±5%
• Ripple and noise of 180 mV
• Minimum efficiency of 88%
• Minimum operating temperature of 0°C
• Maximum operating temperature of +40°C
• Overall dimensions of 137 (L) x 59 (W) x 34 mm (D)
• Weight of 620 g
