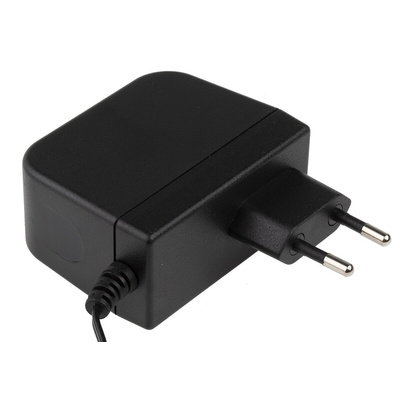

RS PRO 24W Plug-In AC/DC Adapter 12V dc Output, 2A Output

RS PRO, 24 W Plug Adapter 12 V DC, 2 A, Level VI Efficiency, 1 Output Switched Mode Power Supply, Type C

With its practical switched-mode power supply, this plug adapter is used for many day-to-day power applications. It’s part of the high-efficiency RS PRO Class II range and also meets high safety standards.

This power supply plug delivers 24 W of continuous power. Well regulated and coming with Level VI efficiency, it offers both overvoltage and overload protection. What's more, it has no load power consumption and a low leakage current. The adapter has a European fixed AC head and has a 2-pin plug for your socket. It’s designed for voltages ranging from 100 V AC to 240 V AC.

The adapter is suitable for chargers, motor controls, set-top boxes and other household electrical devices. It comes with a three-year warranty and is designed for reliability. It also meets EU standards for health, safety and environmental impact and has CE approval too.

Features and Benefits

• Regulated type C (AC/DC-DC) switched-mode power supply EU plug adapter
• 12 V DC output voltage
• Input voltage of 100 V AC to 240 V AC
• One output with a current of 2 A
• Suitable for a temperature range of 0°C to +40°C
• 2.1 mm x 5.5 mm x 12 mm centre positive output connector
• ±2% line and load regulation
• 24 W power rating
• Width of 36 mm
• Depth of 95.2 mm
• Length of 74.5 mm
• Input frequency range pf 47 - 63 Hz
• Maximum input current of 800 mA
• Overload and overvoltage protection
• VI energy efficiency level with 86.8% minimum efficiency
• CE certified and meets CE-EN 55022 and TUV-GS-EN 60950-1 standards
