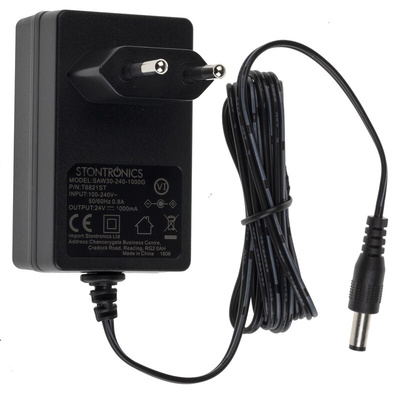

RS PRO 24W Plug-In AC/DC Adapter 24V dc Output, 1A Output

RS PRO, 24 W Plug Adapter 24 V DC, 1 A, Level VI Efficiency, 1 Output Switched Mode Power Supply, Type C

From the RS PRO range of approved power supplies, this 24 V AC/DC plug adaptor stands out for its high efficiency and general-purpose use. It has a 2-pin universal input plug and is suitable for many IT applications.

The European plug is supplied with a fixed wall plug enclosure that's also compact and saves on space. It’s capable of supplying 24 W of continuous, regulated power and comes with overload and over-voltage protection. The adaptor's low leakage current enhances safety, while its DoE (Department of Energy) level VI rating means it's both energy-efficient and light on environmental impact.

This plug adaptor is backed by the RS PRO seal of approval and is sold with a three-year warranty. It's highly portable and can also be used for gaming computers and point of sale machines.

Features and Benefits

• EU type plug adaptor
• AC/DC-DC power signal conversion
• Switched-mode power supply type
• Type C plug
• Line regulation of ± 2%
• Protected from overload and over-voltage
• Maximum input current of 800 mA
• Power rating of 24 W
• Output voltage of 24 V DC
• One output
• Output current of 1 A
• Load regulation of ± 2%

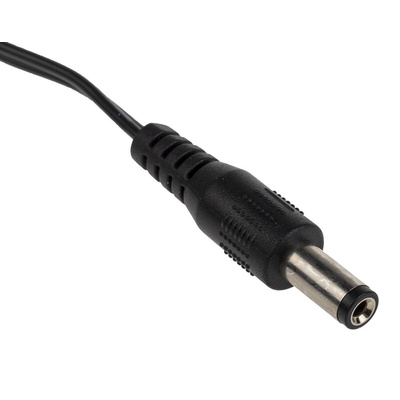

• Output connector of 2.1 mm x 5.5 mm x 12 mm centre positive
• Energy efficiency level of VI
• Input frequency range of 47 Hz to 63 Hz
• Input voltage of 100 V AC, 110 V AC, 115 V AC, 120 V AC, 127 V AC, 220 V AC, 230 V AC, 240 V AC
• Efficiency of 86.8% (minimum)
• Regulated adaptor
• Operating temperature range of 0°C to +40°C
• Dimensions of 74.5 mm x 50.4 mm x 88.7 mm
• CE Certified and meets CE-EN 55022 (radio signal interference) and T-LICENSE-BS EN 60950-1 (electronic equipment safety) standards
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
