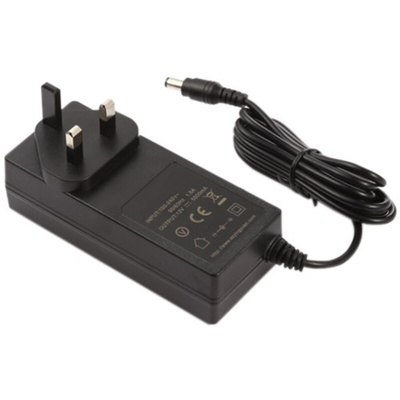

RS PRO 60W Plug-In AC/DC Adapter 24V dc Output, 2.5A Output

RS PRO, 60 W Plug Adapter 24 V DC, 2.5 A, Level VI Efficiency, 1 Output Switch Mode Power Supply, Type G

Power your DC electronics from the mains AC with this RS PRO single output switch-mode power supply (SMPS). It converts alternating currents for safe use with battery-operated DC devices and is found in a wide range of environments from living rooms to factories and offices.
This unit has a three-pin, Type G British plug attached to a compact enclosure that fixes to the wall. For your safety, it comes with protection against overload and overvoltage. The product has a Level VI US DOE (United States Department of the Environment) certification, so it's particularly energy-efficient. It's suited to many general power applications, so you'll see it used with networking and peripherals devices, point of sale equipment and audio speakers.

Features and Benefits

• Depth of 33.5 mm
• Minimum efficiency of 88%
• Input frequency range of 47 to 63 Hz
• Input voltage of 100 to 240 V AC
• Length of 117 mm
• Line and load regulation of ±5%
• Maximum input current of 200 mA
• Temperature range of 0ºC to +40ºC
• One output
• Output current of 2.5 A
• Output voltage of 24 V DC
• Power rating of 60 W
• AC/DC-DC conversion type
• Ripple and noise of 200 mV
• Weight of 150 g
• Width of 51 mm
