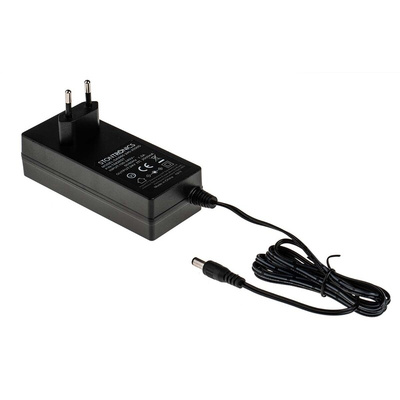

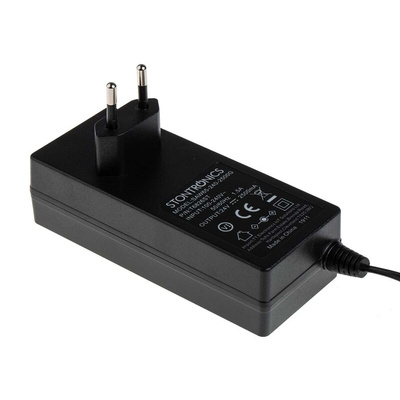

RS PRO 60W Plug-In AC/DC Adapter 24V dc Output, 2.5A Output

RS PRO, 60 W Plug Adapter 24 V DC, 2.5 A, Level VI Efficiency, 1 Output Switched Mode Power Supply, Type C

This RS PRO AC/DC plug adapter has a switched-mode power supply. It converts electrical currents, frequencies and voltages, meeting the needs of a variety of household devices.

The adapter is highly efficient with a low-leakage current and no-load power consumption. Regulating its output power at 60 W, the adapter has overload as well as overvoltage protection. It has a European fixed AC head that provides a compact fixed-wall plug enclosure. The input is a 2-pin plug connector and this will handle voltages ranging from 100 V AC to 240 V AC.

Suited to chargers, set-top boxes and motor controls, this adapter is often used in IT for networking equipment and gaming machines. CE (Conformité Européene) approved, it complies with EU safety, health and environmental standards. The adapter also comes with a three-year warranty.

Features and Benefits

• Type C EU plug adapter type for power signal conversion (AC/DC-DC)
• Switched-mode regulated power supply
• Overload and overvoltage protection

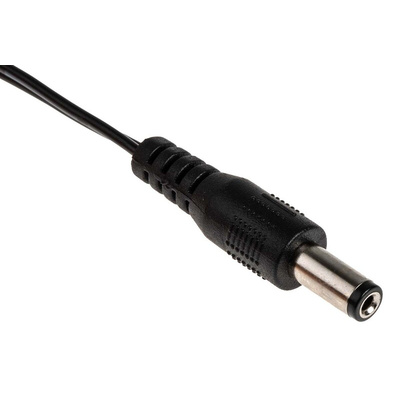

• 2.1 mm x 5.5 mm x 12 mm centre positive output connector
• Line and load regulation of ±5%
• Depth of 33.5 mm
• Length of 117 mm
• Width of 51 mm
• 24 V dc output voltage
• Power rating of 60 W
• 100 to 240 V ac input voltage range
• One output current of 2.5 A
• Output connector of 2.1 mm x 5.5 mm x 12 mm centre positive
• Input frequency range of 47 - 63 Hz
• Input voltage of 100 V AC - 240 V AC
• Maximum input current of 1.5 A
• Suitable in a temperature range of 0°C to +40°C
• Minimum of 88% efficiency with a VI energy efficiency level
• Meets multiple standards, including CE-EN 60950-1, EN 55032 EN 61000-3-2

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
