M200-01200042, Control Techniques Inverter Drive, 0.75 kW, 1 Phase, 200 → 240 V ac, 4.2 A, M200 Series

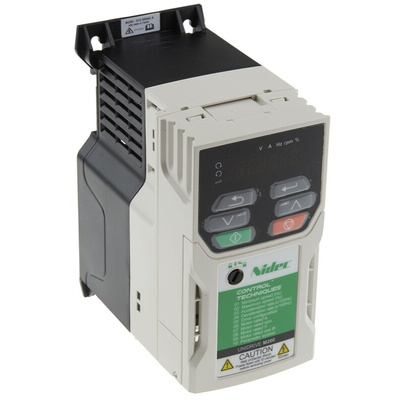

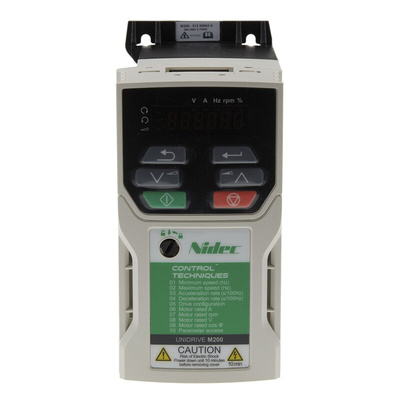

Control Techniques Inverter Drive

The Control Techniques 1-phase inverter drive with 3.3A current and 0.55kW power rating belongs to the M200 series. This is available with vector control drive technique has three analogue and five digital inputs with one relay control connection.

Features and Benefits

• Ambient temperature ranges between -20°C and 40°C
• Compact size
• Control panel with digital LED display
• EMC filter to limit electromagnetic interference
• Enhanced up-time and system flexibility
• Improved throughput with advanced open loop motor control algorithms
• Integrated PLC gives more control
• Panel mount inverter drive
• PROFINET, PROFIBUS, ModBus, CANopen, DeviceNet, EtherCAT and Ethernet field bus communication type
• Quick diagnosis system
• Reliability
• Rotor flux control for maximum stability and control

Certifications

• CE certified
• CUL certified
• IP21 rating
• ISO 9001 approval
• TUV Rheinland certified

Datasheet

Unidrive M200 Control User Guide
