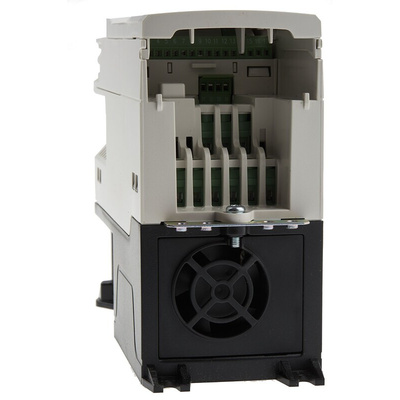

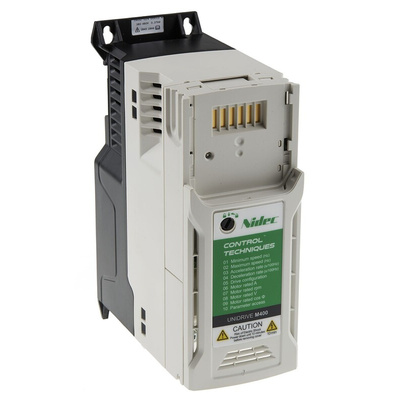

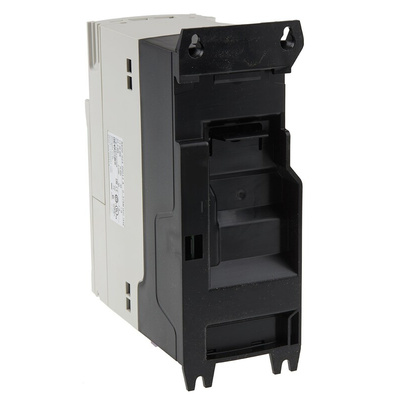

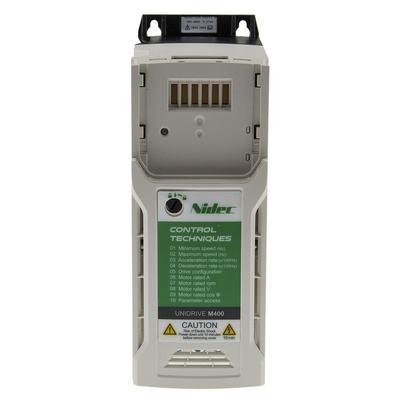

M400-02400013, Control Techniques Inverter Drive, 0.37 kW, 3 Phase, 380 → 480 V ac, 1.3 A, M400 Series

Control Techniques Inverter Drive

The Control Techniques 3-phase inverter drive with 1.3A current and 0.37kW power rating belongs to the M400 series. This is available with vector control drive technique has four analogue and seven digital inputs and outputs with one relay and two STO control connections.

Features and Benefits

• Ambient temperature ranges between -20°C and 40°C
• Compact size
• EMC filter to limit electromagnetic interference
• Enhanced up-time and system flexibility
• Improved throughput with advanced open loop motor control algorithms
• Integrated PLC gives more control
• Panel mount inverter drive
• PROFINET, PROFIBUS, ModBus, CANopen, DeviceNet, EtherCAT and Ethernet field bus communication type
• Quick diagnosis system
• Reliability
• Rotor flux control for maximum stability and control
• 3-phase input and 3-phase output terminals

Certifications

• CE certified
• CUL certified
• IP21 rating
• ISO 9001 approval
• TUV Rheinland certified

Datasheet

Unidrive M400 Quick Start Guide
