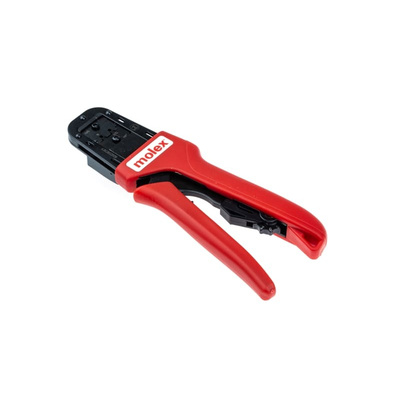

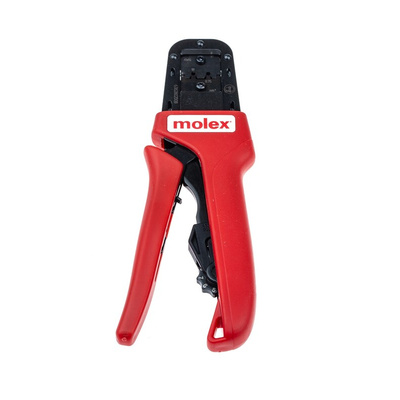

63828-0200, Molex 207129 Hand Ratcheting Crimp Tool for Micro-Fit 3.0 Connector Contacts, 0.75mm² Wire, Обжимные клещи

Molex Hand Crimping Tool For Use With Micro-Fit 3.0 Series - 207129 Series - 63828-0200

This Molex hand crimping tool makes it simple to crimp terminals by simply squeezing the handles until the ratchet mechanism releases. The insulation diameters are clearly marked on the jaw to help you determine appropriate entry points for efficient crimping. This tool is suitable for both right-handed and left-handed operation, making it a versatile choice. The built-in ratchet mechanism keeps the handles locked until the crimp cycle is completed, preventing partial crimps. It's designed for a wire size of 18AWG (American Wire Gauge), making it suitable for a variety of standard electrical applications.

• Locator holds terminals in the proper position for more precise crimping
• Comfortable rubber-coated handles to reduce fatigue during use
• Ratchet release lever in the inner body handle for quick release in case of emergencies

Applications

• Power control units
• Lighting installations
• Consumer electronics

How do I use the locator in this tool?

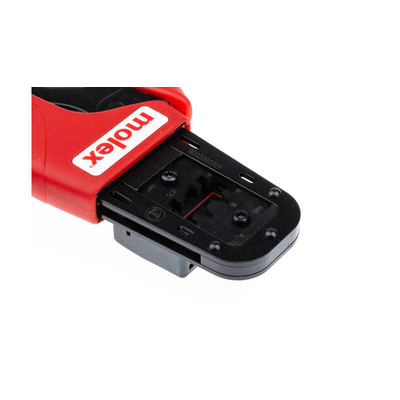

Position the centre of the locator in the down position and attach it to the back of the tool. Push the locator button, then load your wire into the selected crimp profile. Release the locator button to automatically hold the wire in place.
