43031-0021, Molex Micro-Fit Series Male Crimp Terminal, 18AWG Min, 18AWG Max, Контакты

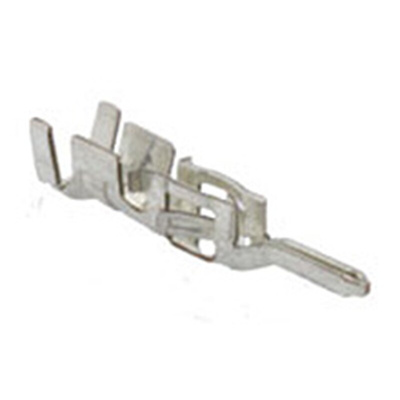

Molex Crimp Terminal, Phosphor Bronze Construction, 8.5A Maximum Current - Micro-Fit Series - 43031-0021

Need a safe way to link wires to your circuit boards? Reach for this crimp terminal from Molex. It's designed for use with plug housings in the Micro-Fit series. Use it to clamp and seal stranded wires for easy attachment to PCB headers. This setup shields live parts from exposure and reduces the risk of electrical hazards. The connector is made of highly conductive phosphor bronze, so you can be sure of reliable signal transmission.

Features & Benefits

• Tin plating improves the terminal's resistance to corrosion, making it fit for harsh settings
• Maximum current of 8.5A per contact makes it the right choice for medium-duty applications
• Comes in a pack of 100, giving you enough to cover complex circuit designs

Applications

• Consumer electronics
• CCTV systems
• Data banks

How durable is this crimp terminal?

This unit handles up to 30 mating cycles, so you can rely on it for long-term use.

Datasheet

Datasheet

Line Drawing - SD 43031 Series
