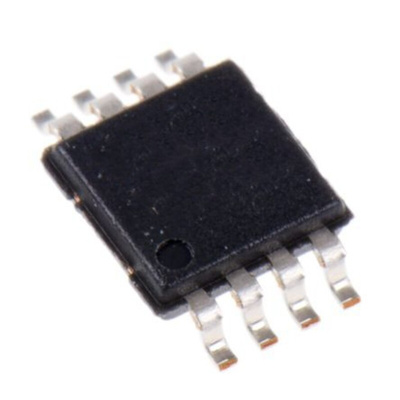

Vishay DG419LEDQ-T1-GE3 Analogue SPDT Switch 3 to 16 V, 8-Pin MSOP

Vishay Multiplexer Switch IC

The Vishay DG4xxLE series is a lower voltage pin-for-pin compatible companion device. It has an electric rating which ranges between 3V and 16V single supply or between ±3V and ±8V dual supply and is fully specified at +12V, ± 5V, +5V and +3V. Each switch conducts equally well in both the directions when on, blocks input voltages up to the supply level when off and exhibits break before switching action.

Features and Benefits

+3 V to +16 V single supply, or
± 3 V to ± 8 V dual supply
On resistance: 6  for DG417LE, DG418LE
11  for DG419LE
Fast switching speeds: tON = 20 ns, tOFF = 15 ns
Break-before-make switching for DG419LE
Fully specified at +12 V, ± 5 V, +5 V, and +3 V
V+ to V- analog signal range
CMOS / TTL compatible
Control logic input can be over V+
8 pin TSSOP and 8 pin SOIC packages
APPLICATIONS
Data acquisition systems
Medical instruments
Precision instruments
Communications systems
Automated test equipment
Sample and hold circuit
Audio and video signal routing

Applications

• Audio/video signal routing
• Automated test equipment
• Communication systems
• Data acquisition systems
• Medical instruments
• Precision instruments
• Sample and hold circuit
