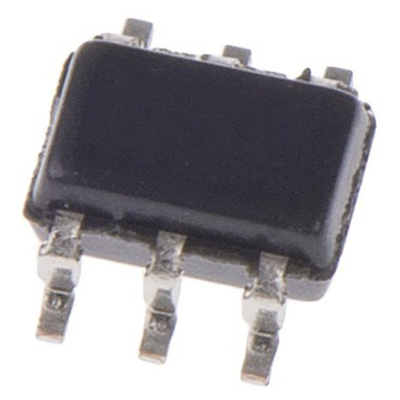

Vishay DG3157EDL-T1-GE3 Analogue SPDT Switch 1.65 to 5.5 V, 6-Pin SC-70

The DG3157E is a high speed single-pole double-throw analog switch designed for +1.65 V to +5.5 V single power rail operation. Fabricated with high density CMOS technology, the DG3157E achieves low on-resistance, fast switching speed, and high bandwidth while maintains low power consumption. The DG3157E can handle both analog and digital signals and permits signals with amplitudes of up to V+ to be transmitted in either direction. When the select pin is low, B0 is connected to the output A pin. When the select pin is high, B1 is connected to the output A pin.

Direct cross to industry standard
Low switch on-resistance
+1.65 V to +5.5 V single supply operation
Powered-off protection
Control logic inputs can go over V+ up to 5.5 V
Low parasitic capacitance, 7 pF at switch off
Break before make switching
Latch-up performance exceeds 200 mA
High ESD rating
APPLICATIONS
Battery powered devices
Consumer and computing
Instrumentation
Medical equipment
Control and automation
