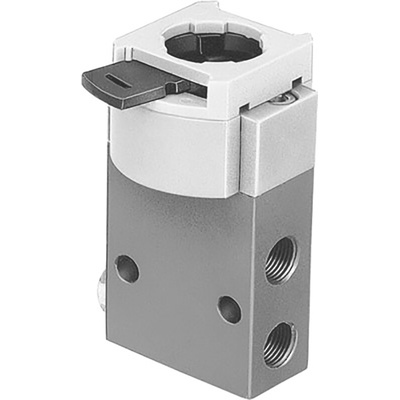

Festo G 1/8 Manual Condensate Drain, SVS-3-1/8

Festo Manual Condensate Drain, G 1/8 - SVS Series - SVS-3-1/8

This condensate drain from Festo has an actuator that works like a button to manually release contaminants such as excess lubricant or metal particles from the unit. It operates together with an air filter to remove excess moisture and dirt from compressed air systems. The unit has a rapid quick-coupling arrangement so you can quickly attach or remove the actuator. It operates with clean precision by ensuring there's no overflow between the exhaust gas and intake channels during switching.

• G 1/8 inlet and outlet port
• Thread size of 3.175 mm
• Operating pressure range of 2.8 bar to 8 bar
• Panel mounting with spring return
• Operating temperature range of -10°C to +60°C
• Dimensions of 68 (height) x 37.5 (width) x 40.5 (depth) mm

Range Information

• The Festo SVS range of front-panel drain valves is suited to actuator attachments such as push-button and key actuators, mushroom pushbuttons and selector and toggle switches
• Easy to mount and dismount
• Available as manually or mechanically actuated valves
• This range of components features poppet valves that have no overlap, which increases the response time of the units
