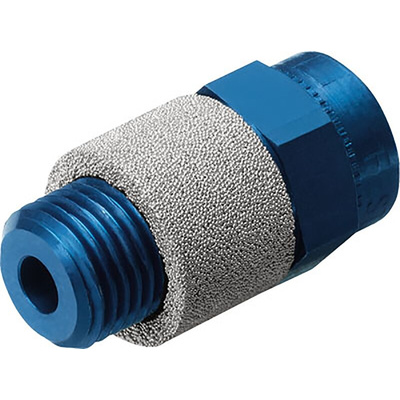

GRE-1/8, Festo Adjustable Exhaust Valve, x 10 bar

Festo Exhaust Control Valve, 10 Bar, G1/8 - GRE-1/8

Control airflow and reduce noise levels with this exhaust valve from Festo. It has a G1/8 threaded connector for simple and secure installation on pneumatic tools and equipment. The valve is quick to adjust by way of the slotted head screw. This lets you easily control flow rates between 0 and 520L/min (litres per minute) to cylinders and rotary drives such as condensate drains. There's an integrated silencer around the outer shell, to muffle pneumatic noise without affecting the airflow.

• Wide operating temperature between -10°C and +70°C for use in harsh environments
• Compact size of 15mm in diameter to fit where space is limited
• Works with pressures between 0 to 10 bar for high compatibility with medium pressure systems
• 15g weight puts minimal strain on portable or moving equipment

Applications

• Automotive manufacture
• Aerospace industry
• Industrial process control
• Robotics

How durable is this air flow control valve?

Made from a mechanically strong wrought aluminium alloy and corrosion-resistant brass, this control valve is very durable. Inside, the valve is sealed with chemical-resistant and long-lasting nitrile rubber (NBR).

Datasheet

GRE-1/8 Specification Sheet

Catalogue - Exhaust Air Flow Control Valves
