H-1/4-B, Festo H Series Pneumatic Drain

FESTO H Series Pneumatic Manual Control Valve

H Series control valves are designed to be small and compact with flow rates of up to 1,000 l/min, they offer outstanding pneumatic performance for a wide array of applications. Reliability is high as is durability due to proven piston spool and piston poppet valves. The series is versatile providing practical solutions to different requirements and round silencers for ducted exhaust air. Some of the H series feature reverse operation and some are suitable for vacuum applications.
This hand lever design has an operating air pressure of -0.95 to 10bar.

Features and Benefits:

• Aluminium die cast housing creating strength and durability
• G1/4 connection ports
• Operating temperature -10°C to +60°C
• Through hole mounting type

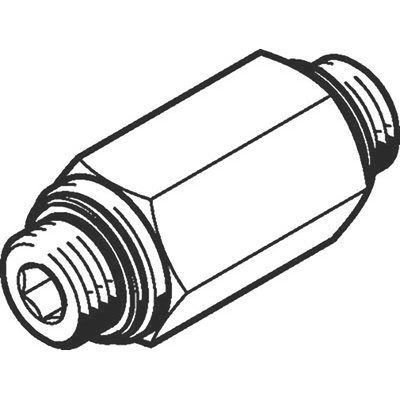

Festo Pneumatic Non-return Valve

The Festo H Series non-return control valve is designed to be small and compact with flow rates of up to 1,000l/min. They offer outstanding pneumatic performance for a wide array of applications. It has high reliability and durability due to its proven piston spool and piston poppet valves. The valve is versatile in providing practical solutions to different requirements and round silencers for ducted exhaust air.

Features and Benefits

• Anodised wrought aluminium alloy housing for good strength and durability
• G1/4 inlet and G1/4 outlet threaded connection
• Operating pressure ranges between 0.4bar and 12bar
• Operating temperature ranges between -10°C and 60°C

Applications

• Compressed air medium

Certifications

• ISO8573-1:2010

Manual Control Valves

Datasheet

H-1/4-B Specification Sheet
