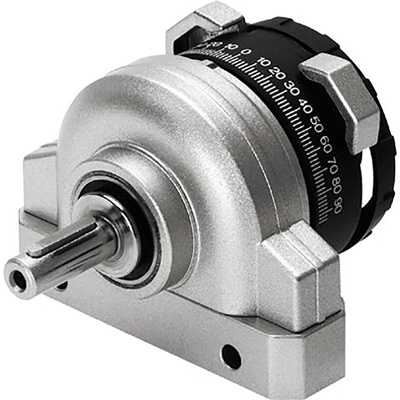

DSR-32-180-P, Festo DSR Series 8 bar Double Action Pneumatic Rotary Actuator, 180° Rotary Angle, 92mm Bore

FESTO Semi Rotary Drive

The DSR series by FESTO offers a wide variety of semi-rotary drives, with a range of mounting options available. The drives have an infinitely adjustable swivel angle for reduced setup times.

Features and benefits

• Any impacts are minimised by flexible plastic planes, and the adjustable stop system is separate from the rotary vane, meaning forces are absorbed by the stop blocks


• The rotary drives have a double acting mode of operation


• Rotary vane principle


• Through-hole mounting


• Nickel plated steel drive shaft


• A comprehensive range of accessories are available


• Size 32


• G1/8 pneumatic connection


• NBR material seals


• Operating pressure of 1.5 to 8 bar

Uses and applications

Semi-rotary drives are required for applications involving a turning or twisting movement. They are commonly used in industrial applications such as transferring parts and controlling valves.
