SDAT-MHS-M50-1L-SA-E, Festo Position Transmitter Pneumatic Position Detector, IP65, IP68, 15 to 30V dc, NC, NO, PNP Operation, SDAT-MHS, with, Датчик

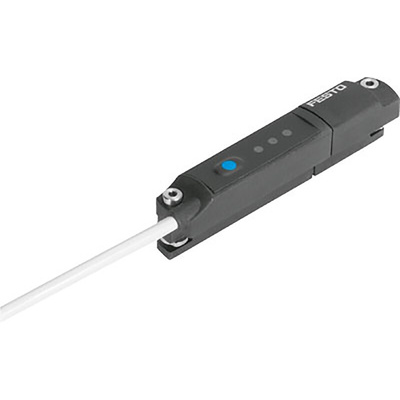

FESTO Position Transmitter - SDAT-MHS-M50-1L-SA-E-0.3-M8

Returning an accurate reading with FESTO's position transmitter is easily achieved, the device gives users feedback on a percentage of the valve opening. With a magnetic hall measuring principle, this device can be inserted into the slot from above, secured with a screw. This kind of position transmitter is suitable for use with energy chain and robot lines.

Features & Benefits

• This position transmitter is for T-slot design
• Oil resistant
• Hall magnetic measuring principle
• Conforms to RoHS and is halogen-free
• LED status indicators
• All electrical connections are polarity protected
• Nickel-plated brass, PA-reinforced, Polyester and high allow steel that is non-corrosive housing materials
• Cable with plug, M8, 4-pin and turnable threads electrical connections
• Any assembly positions

How does a position transmitter work?

Essentially, a position transmitter measures the span of travel of any moving object and it transmits a signal. They can be used in several positions, most commonly on a shaft or a valve or on the louvers of a cooler, here it will measure the distance of movement.

IO-Link Technology

SDAT-MHS-M50-1L-SA-E Specification Sheet
