SDAT-MHS-M80-1L-SA-E, Festo Position Transmitter Pneumatic Position Detector, IP65, IP68, 15 → 30V dc, NC, NO, PNP Operation,, Датчик

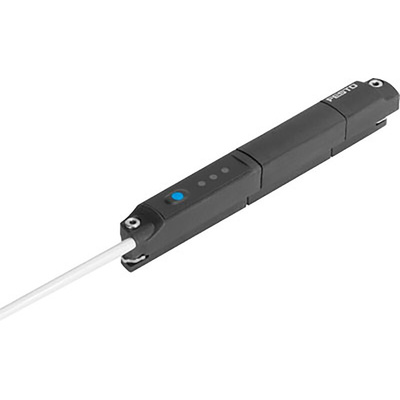

Festo Magnetic Pneumatic Position Detector, NO/NC/PNP Operation, 15 to 30V - SDAT-MHS-M80-1L-SA-E

To stay fully informed of the status of pistons in your equipment, choose this Festo pneumatic position detector. It uses an analogue feedback signal to identify the position of pistons and, thanks to its high repetition accuracy, helps streamline the functionality of your cylinders. As it's fitted with an LED (light-emitting diode) indicator, you can get system updates at a glance. Ingress protection ratings of IP65 and IP68 indicate the unit is sealed against dust and moisture, making it suitable for use in demanding industrial environments.

• Operating temperature range of -20°C to +70°C for use in extreme industrial environments
• Compatible with T-slots for standard mounting
• Oil-resistant housing ensures unit longevity and reliability
• 80mm sensing range for use in small to medium applications

Applications

• Medical equipment
• Industrial automation systems
• Food and drinks manufacture

How do pneumatic position detectors work?

Pneumatic position detectors are mounted to a pneumatic cylinder’s body and will light up depending on its proximity to the piston magnet. The detector uses a magnetic field to detect extension, retraction or individual positions along the cylinder body.

Datasheet

Catalogue - Position Transmitters SDAT - MHS

Datasheet - SDAT-MHS-M80-1L-SA-E

Instruction Sheet - SDAT-MHS-M80-1L-SA-E
