SDAT-MHS-M100-1L-SA-E, Festo Position Transmitter Pneumatic Position Detector, IP65, IP68, 15 → 30V dc, NC, NO, PNP Operation, Датчик

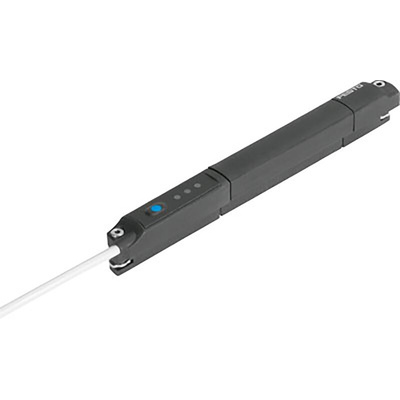

FESTO Position Transmitter - SDAT-MHS-M100-1L-SA-E-0.3-M8

Returning an accurate reading with FESTO's position transmitter is easily achieved, the device gives users feedback on a percentage of the valve opening.

Features & Benefits

• This position transmitter is for T-slot design
• Position measured variable
• Oil resistant
• Hall magnetic measuring principle
• 0-100 mm sensing range
• N/C or N/O contact, switchable switching element function
• This device has an LED status indicator for ready, operating and status
• The electrical connections are accomplished with the cable and plug, M8, 4-pin and turnable threads
• There is polarity protection for all electrical connections
• 10% residual ripple
• The electrical contact materials are copper allow and gold plated

How does a position transmitter work?

Essentially, a position transmitter measures the span of travel of any moving object and it transmits a signal. They can be used in several positions, most commonly on a shaft or a valve or on the louvers of a cooler, here it will measure the distance of movement.

IO Link Technology

SDAT-MHS-M100-1L-SA-E Specification Sheet
