Festo Pneumatic Position Detector

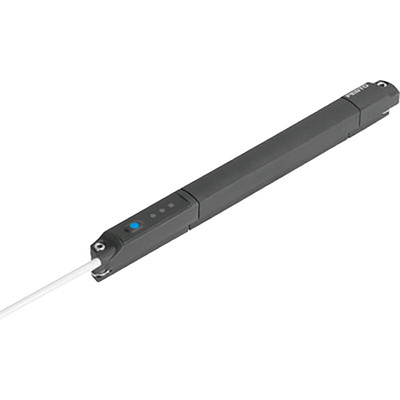

The Festo SDAT-MHS PNP position transmitter is intended for contactless recording of the piston position of magnetically detectable drives. It is appropriate for use with Festo drives with T-slot (profile slot 8) as well as round cylinders and tie-rod cylinders with mounting kits. It has a 4-pin cable with a plug rotating thread detector. This detector has programmable IO link and switching output with an LED indicator.

Features and Benefits

• 125mm sensing range
• 0.128mA/mm sensitivity
• Oil resistant design and high repetition accuracy
• 0.3m cable length
• Wide range of mounting and connection options
• Operating temperature ranges between -20°C and 70°C
• Operating voltage ranges between 15VDC and 30VDC
• Analogue output ranges between 4 and 20mA
• Maximum output current 100mA
• PNP type control output

Applications

• Food and packaging sector
• Energy chain and robots
• Medical equipment
• Automation industry

Certifications

• IP65 rated
• IP68 rated
• RCM
• cUL s -listed (OL)

Datasheet

SDAT-MHS-M125-1L-SA-E Specification Sheet
