SDAT-MHS-M160-1L-SA-E, Festo Pneumatic Position Detector, IP65, IP68, 15 to 30V dc, NC, NO, PNP Operation, SDAT-MHS, with LED indicator,, Датчик

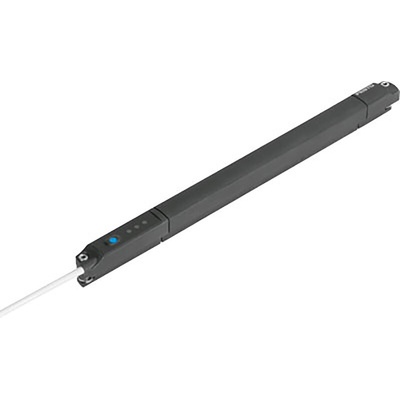

Festo Pneumatic Position Detector, 0.3m Cable, 0.1mA/mm Measuring Sensitivity - SDAT-MHS-M160-1L-SA-E

Accurately pinpoint the position of pistons in your industrial system with this pneumatic detector from Festo. Its precision measuring ranges from 0 to 160,000μm, so you'll notice when your setup steps out of line. As it functions in a wide supply voltage between 15 to 30V DC, this is a versatile option. It's resistant to oil, so you can rely on it to provide prolonged performance without a slip-up, even in demanding factory settings.

Features & Benefits

• Low 35g weight supports easy handling and doesn't add unnecessary load to your kit
• Traffic light LED system displays the status of your operations for easy and intuitive monitoring
• IP68 rating provides complete protection against dust and immersion in water up to 1.5m for 30 minutes

Applications

• Industrial automation
• Robotics systems
• Energy chain operations
• Medical equipment

Does this detector function in harsh environments?

Yes. The unit operates in a broad temperature range between -25°C and +70°C, so it's suitable for use in harsh environments.

What's the cable sheath made of?

The cable sheath is made from tough PUR for resistance to abrasion and torsion, to provide a longer service life.

Datasheet

SDAT-MHS-M160-1L-SA-E Specification Sheet
