H-QS-10, Festo H Series Pneumatic Drain

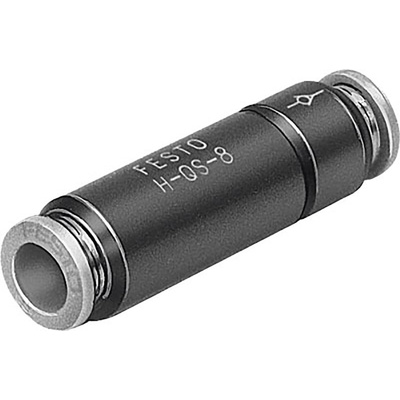

FESTO H Series Non-Return Valves

Offering a small footprint these H series, pneumatic cylinder shaped, non-return valve is made with a robust aluminium housing, ensuring they withstands high pressures. Featuring simple tube mounting they make coupling and uncoupling simple. Air flows through one direction allowing it to flow into the valve and out the other port, ensuring no return. Festo valves are reliable and precise whilst also being compact and lightweight.

Features and Benefits:

• Non return valve
• QS-8 connection
• Line installation
• Flow rate 681 L/min
• Operating pressure -1 bar to 10 bar
• 0 °C to 60 °C
• Aluminium housing
• Compressed air in accordance with ISO8573-1:2010 [7:-:-]
• Free of copper and PTFE
• RoHS compliant

Festo Pneumatic Non-return Valve

The Festo H Series non-return control valve is designed to be small and compact with flow rates of up to 1,480l/min. It has a robust aluminium housing, ensuring it withstands high pressures. Featuring simple tube mounting they make coupling and uncoupling simple. Air flows through one direction allowing it to flow into the valve and out from the other port, ensuring no return. Festo valves are reliable and precise whilst also being compact and lightweight.

Features and Benefits

• Anodised aluminium housing for good strength and durability
• Free of copper and PTFE
• Operating pressure ranges between -1bar and 10bar
• Operating temperature ranges between 0°C and 60°C
• QS-10 inlet and QS-10 outlet threaded connection

Applications

• Compressed air medium

Certifications

• ISO8573-1:2010

Datasheet

H-QS-10 Specification Sheet
