QH-QS-6-1/8, Festo Manual Bistable Pneumatic Manual Control Valve QH Series, R 1/8, 1/8in, 153487, Клапан

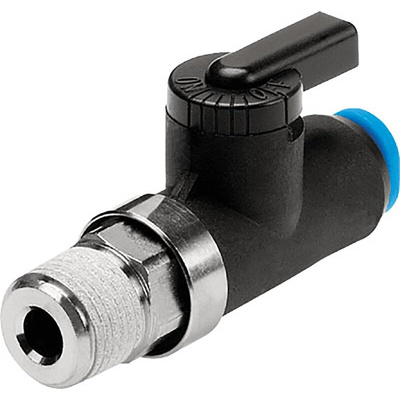

Festo Bistable Pneumatic Manual Control Valve - QH Series - QH-QS-6-1/8

This Festo manual bistable valve controls the flow of compressed air or water in industrial pneumatic applications. It can be used across a wide range of temperatures and pressures. You can quickly switch off a manual valve such as this one in the event of machine failure, stopping the flow of air or liquid and halting the working process. This enhances operational safety. The component has a durable brass connector at one end, offering excellent resistance to corrosion. A push-in fitting on the other end means you can conveniently attach it in-line.

• Ball valve design structure
• Maximum flow rate of 560 l/min
• Maximum operating pressure of 10 bar
• Port connection thread of R 1/8
• Thread size of 3.175 mm
• Two ports with one position
• Nominal size of 2.5 mm
• Operating temperature range of 0°C to +60°C

Range Information

• The Festo QH series of manual control valves is available with threads or push-in connectors at both ends or with a combination of thread and push-in connectors
• The units all have soft-sealing fittings which are easy and safe to use and don't need to be re-tightened

Festo Ball Valves

Datasheet

QH-QS-6-1/8 Specification Sheet
