CPE18-M1H-3GL-1/4, Festo 3/2 Solenoid Pilot Valve - Electrical G 1/4 CPE Series 24V dc, 163141, Клапан

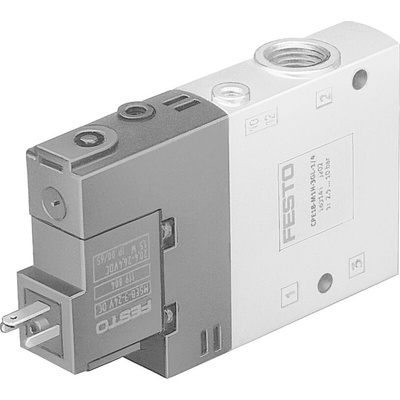

Festo Solenoid Pilot Valve, 1,500L/min Maximum Flow Rate, 10 Bar Maximum Operating Pressure - CPE18-M1H-3GL-1/4

To get airflow to the right place at the right time, put this solenoid pilot valve from Festo in control. It has a 3/2 closed valve configuration, meaning there's one supply port, one output port and one exhaust port. This setup can be used to drive a single-acting cylinder. A standard G1/4 threaded connection makes installation quick and easy. As it tips the scales at 150g, the unit puts minimal strain on your machinery or mounting surface. For versatility, you can mount it in any position.

Features & Benefits

• Width of 18mm slots neatly into a busy enclosure
• Die-cast aluminium construction resists impact and corrosion for long-lasting performance
• 1.5W power consumption means it's energy-efficient
• Tough enough for demanding environments as it has an operating temperature range between -5°C and +50°C

Applications

• Food and beverage industry
• Medical and dental equipment
• HVAC systems

What operating pressure range can this device handle?

This pilot valve has a wide operating pressure range between 2.5 and 10 bar, making it suitable for low-pressure to medium-pressure pneumatic equipment.

Datasheet

CPE18-M1H-3GL-1/4 Specification Sheet
