CPE18-M1H-5L-1/4, Festo 5/2 Solenoid Pilot Valve - Electrical G 1/4 CPE Series 24V dc, 163142, Клапан

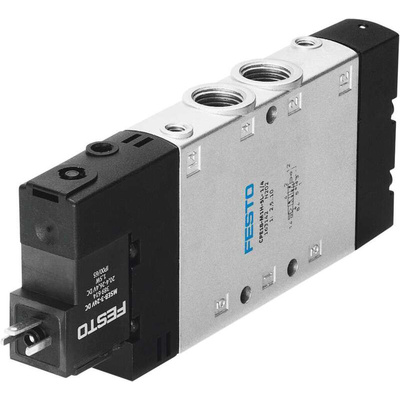

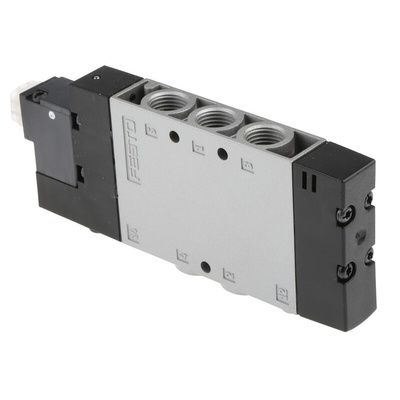

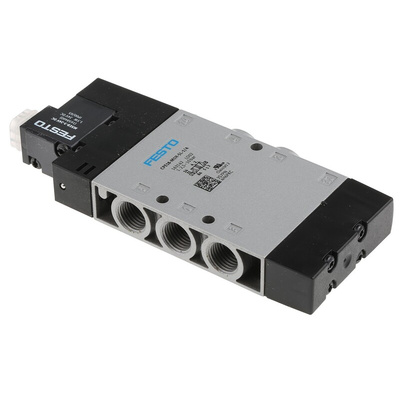

Festo Solenoid Pilot Valve, 18mm Width, Electrical Actuation - CPE18-M1H-5L-1/4

Manage and direct airflow around your industrial pneumatic system with this solenoid pilot valve from Festo. It supports a flow rate of 1300L/min from a unit that's just 18mm wide, so you get high performance from a small footprint. Die-cast aluminium housing stands strong against corrosion and impact, providing long-lasting service in demanding conditions. Thanks to a low power consumption of 1.5W, this unit is an energy-efficient choice. Nitrile rubber seals prevent air leakage and keep out external contaminants for optimal performance.

Features & Benefits

• Standard G1/4 threaded connection for easy installation
• IP65 rating indicates it's dustproof and able to withstand low-pressure water jets
• Safe to use in challenging settings, thanks to an operating temperature range between -5°C and +50°C
• 18ms switch-off and 28ms switch-on times boost productivity
• 100% duty cycle means you can depend on non-stop activity

Applications

• Bottling plants
• Automotive industry
• Manufacturing equipment
• HVAC systems

Is this device protected from power surges?

Yes, this solenoid valve has a permissible voltage fluctuation of up to 10% above 24V DC to protect it from damage caused by power spikes.

Datasheet

CPE18-M1H-5L-1/4 Specification Sheet
