SMTO-8E-PS-S-LED-24, Festo Proximity Sensor Pneumatic Sensor, IP65, IP67, 10 to 30V dc, NO, PNP Operation, SMTO-8E, with LED indicator,, Датчик

FESTO SMT/SME-8M Series T-Slot Proximity Sensors

Festo SMT/SME-8M Series T-Slot proximity sensors are fully compatible with all Festo cylinders that have T-slots. The SME/SMT series provide a reliable sensing solution in a variety of switching options. Sturdy central mounting guarantees that the sensor is securely screwed into the slot. Vibration, shock and tensile forces applied to the cable will neither cause the sensor to come loose nor lead to unreliable sensor functioning.
All sensors have cables suitable for use in energy chains and on robots as standard. This ensures maximum dependability and process reliability.

• Compatible with all Festo T-Slots
• 24 V dc Operating Voltage
• Non-contacting or contacting sensing

Festo Pneumatic Sensor

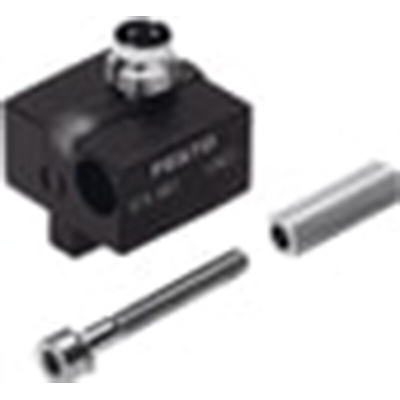

The Festo SMTO-8E is a PNP, N/O contact, 3-wire magnetoresistive proximity sensor, which is fully compatible with all Festo cylinders with T-slots, mounting via accessories. This sensor is a reliable sensing solution for a variety of switching options. Specifically designed for a round slot, the detector is contactless. Its sturdy, central mounting ensures that the sensor is screwed securely into the slot.

Features and Benefits

• Plug M8x1
• Heat and corrosion resistant design
• Wide range of mounting and connection options
• Operating temperature ranges between -20°C and 60°C
• Operating voltage ranges between 10VDC and 30VDC
• Maximum output current 100mA

Applications

• Food and packaging sector
• Energy chain and robots
• Medical equipment
• Automation industry

Certifications

• IP65 rated
• IP67 rated
• RCM trademark

Datasheet

SMTO-8E-PS-S-LED-24 Specification Sheet
