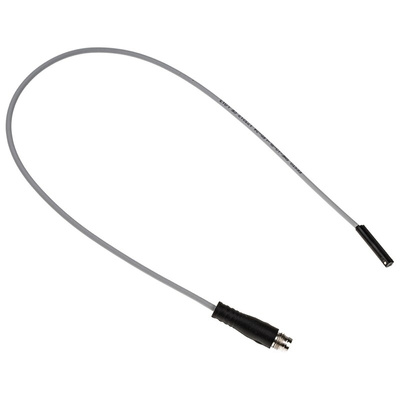

SME-10-SL-LED-24, Festo Proximity Sensor Pneumatic Position Detector, IP65, IP67, 12 to 27V ac/dc, NO Operation, SME-10, with LED, Датчик

FESTO Proximity Sensors

Festo SMT/SME-10M Series C-Slot proximity sensors are fully compatible with all Festo cylinders that have C-slots and round cylinders with corresponding mounting kits. The SME/SMT range provides a reliable sensing solution in a variety of switching options.

Features and Benefits

• Sturdy central mounting guarantees that the sensor is securely screwed into the slot


• Vibration, shock and tensile forces applied to the cable will neither cause the sensor to come loose nor lead to unreliable sensor functioning


• The proximity sensors are compatible with all Festo C-Slots


• 24 V dc operating voltage


• Switching outputs include PNP, NPN, and contacting

Applications and Uses

All sensors have cables suitable for use in energy chains and on robot applications as standard. This ensures maximum dependability and process reliability.

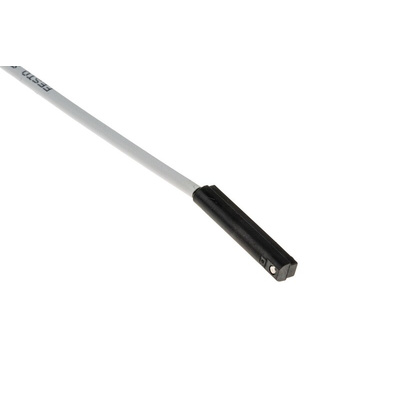

SME-10 Proximity Sensor

• These sensors work using magneto-reed measuring principle


• Inserted into the slot lengthwise


• The materials used are free of copper and PTFE


• Maximum tightening torque of 0.4 Nm


• A yellow LED display signals operating status


• IP65 and IP67 protection class


• Bipolar switch output

Datasheet

SME-10-SL-LED-24 Specification Sheet
