CPE14-M1BH-5/3G, Festo 5/3 Solenoid Pilot Valve - Electrical G 1/8 CPE Series 24V dc, Клапан

CPE Series Solenoid Valves

The FESTO CPE series of universal solenoid valves offer the maximum flow rate with minimum installation space, featuring high performance valves with a long service life. The CPE range is ideal for applications in optimised process sequences and working cycles.

Features and Benefits

• The solenoid valves have a service life of 100 million operating cycles and can withstand tough operating conditions


• The short tubing lengths allow for faster switching and short reaction times, with switching times as low as 12ms


• The FESTO CPE series offer a more economical operation, with low heat generation and low electrical power consumption of 1 or 1.5 watts.


• Pressure range of 0.9-10 bar


• A soft-seal cartridge principle results in lower leakage rates


• The product can operate as an individual valve and can also be mounted on a sturdy aluminium manifold


• Unused valve positions have the option to be covered by a blanking plate, facilitating expansion when desired


• The series offers a wide choice of electrical connections using numerous sockets, with or without cables


• Suitable for operation with unlubricated compressed air


• The valve allows for both internal and external pilot air supply, making it suitable for a vacuum


• High flow rates offer pneumatic efficiency

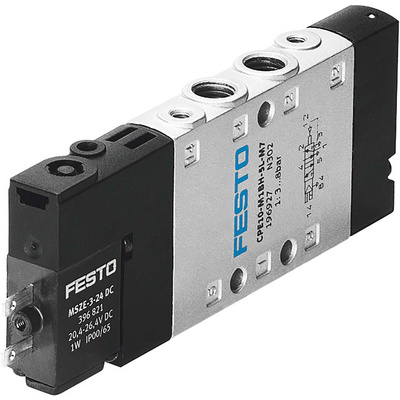

CPE14-M1BH-5/3G-1/8 Solenoid Valve

• 5/3 closed monostable valve function with electrical actuation


• With a width of 14mm, the valve optimises installation space


• Nominal flow rate of 750 I/min


• Mechanical spring reset


• Piston slide design structure


• Aluminium die cast housing material

Datasheet

CPE14-M1BH-5/3G Specification Sheet
