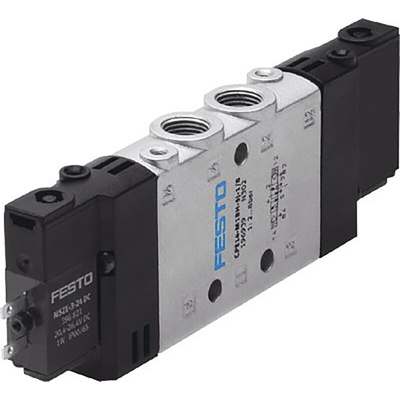

CPE14-M1BH-5J-1/8, Festo 5/2 Solenoid Pilot Valve - Electrical G 1/8 CPE Series 24V dc, 196939, Клапан

Festo Solenoid Pilot Valve, 8 Bar Operating Pressure, 800L/Min Flow Rate - CPE14-M1BH-5J-1/8

Choose this pneumatic solenoid pilot valve from Festo to direct or stop the flow of compressed air in your system. The compact element, with an overall width of 14mm, has a high-performance flow rate of 800L/min. Thanks to the integrated soft-seal device, this component limits leaks for energy-efficient functioning. With operating pressures between 2 and 8 bar, you can use it with heavy-duty applications. An innovative cartridge design delivers 100 million operating cycles for an extended service life.

• M8 electrical connectors for versatility
• IP65 rating indicates the product is dust-tight and resists low-pressure water jets
• Bistable valve remains in a set position and only needs power when actuating
• Aluminium manifold accommodates standard 5/2-valve combinations

Applications

• Automated process applications
• Industrial tools
• Compressed-air cylinders
• Medical imaging equipment

What's the operating temperature range of this solenoid pilot valve?

This valve operates safely at temperatures ranging between -5°C and +50°C, so is suited to demanding conditions.

What's the power consumption of this product?

This pneumatic solenoid valve has a power consumption of 1.28W for energy efficiency.

CPE Series Datasheet

Datasheet

CPE14-M1BH-5J-1/8 Specification Sheet

Catalogue - Universal Valve CPE
