MVH-5-1/4-B, Festo 5/2 Solenoid Pilot Valve - Electrical G 1/4 MVH Series 24V dc, 19701, Клапан

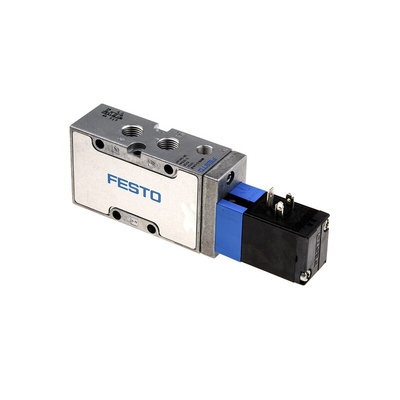

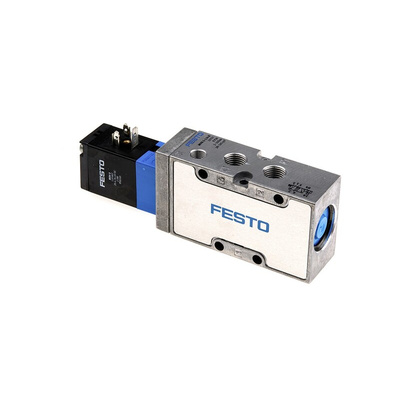

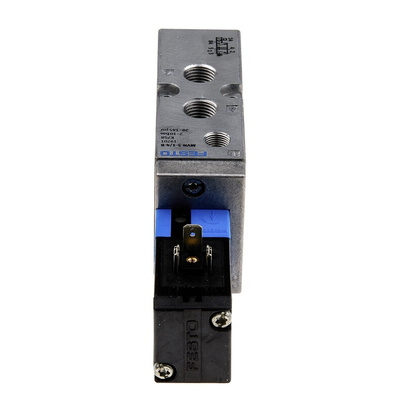

Festo 5/2 Solenoid Pilot Valve, G 1/4, 2 Bar - MVH-5-1/4-B

This robust and sturdy solenoid pilot valve from Festo's MVH series will control the direction in your pneumatic flow systems. It's a five-port, two-position valve that accommodates either single-acting or double-acting cylinders. You'll benefit from high flow rates with efficient power consumption in a compact design that mounts easily using a through hole. The aluminium-alloy construction offers resistance to corrosion, while the operating temperature range of -5°C to +50°C makes it suitable for a range of demanding industrial environments.

• Electrical actuation for quick and efficient operation
• Maximum flow rate of 1300 litres per minute for high-capacity operations
• Versatile operating pressure range of 2 bar to 10 bar, for use with lower-pressure and higher-pressure systems

Applications

• Automatic irrigation systems
• Central heating and cooling applications
• Brewery equipment
• Compressed-air applications

What advantages does a solenoid valve provide?

A solenoid valve uses electrical coils to create a magnetic field that will help control the flow of air or fluids. They can be remotely operated and use low amounts of energy to provide convenience and efficiency.

Datasheet

MVH-5-1/4-B Specification Sheet
