MFH-5-1/8-B, Festo 5/2 Pneumatic Solenoid Valve - Electrical G 1/8 MFH Series, 19758, Клапан

FESTO MFH Series Solenoid Valves

The MFH series of single solenoid valves form part of the Tiger Classic range of valves which are ideal for use in pneumatic or electrical applications. These highly durable valves are available with 5/2 way or 3/2 way function in a range of G thread pipe sizes, depending on the connection you require. These solenoid valves can be mounted on PAL manifold strips or on PRS manifold blocks.

Features and Benefits

• The Tiger Classic range of solenoid pneumatic valves are sturdy and reliable, with an IP65 protection rating and aluminium housing
• Internal pilot air supply with a compressed air operating medium
• Easily interchangeable solenoid coils
• Electrical actuation with F solenoid coil and mechanical spring reset
• The solenoid valve has a highly durable poppet seat design
• The FESTO solenoid valves have optimised response times with U-ring and servo control and a maximum operating pressure of 8 bar
• Operating temperature range of -5 to 40 °C
• Throttleable exhaust air function
• This range features electrically or pneumatically actuated valves

Note

F solenoid coil to be ordered separately.

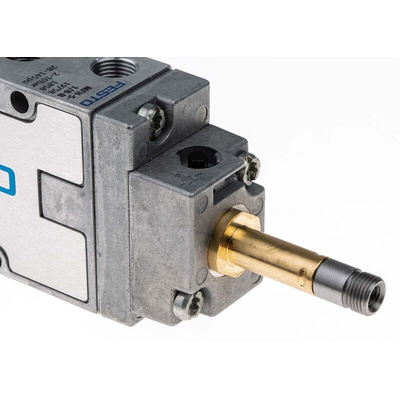

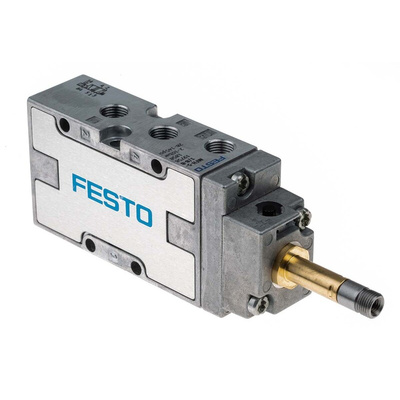

FESTO MFH-5-1/8-B Solenoid Valve

• Storage temperature -40 to 60°C
• Ambient temperature -5 to 40°C
• Max. switching frequency of 3 Hz
• Low corrosion stress CRC classification
• This solenoid valve has an internal pilot air supply
• 5/2 monostable valve function
• Electrical actuation type
• Pneumatic connection ports 1-5 are G1/8
• 2-10 bar operating pressure
• Switching time off is 30 ms and switching time on is 10 ms
• Standard nominal flow rate is 750 l/min l/min

Festo Tiger Classic

MFH-5-1/8-B Specification Sheet
